9975 Series Remote Hydraulic Control Valves

Bareco Remote Hydraulic Control Valves allow you to operate hydraulic functions on implements and attachments using your tractor's existing hydraulic system. These open-centre valves are suited to tractors that require external hydraulic control without replacing or bypassing the factory hydraulic circuit.

Available Models

• B-8472: Single spool, double acting, open centre

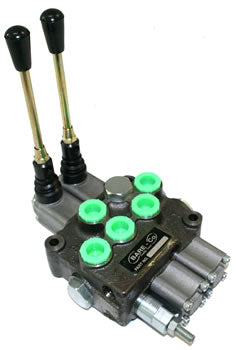

• B-8473: Double spool, double acting, open centre
• B-8474: Double spool, one double acting and one single acting, open centre

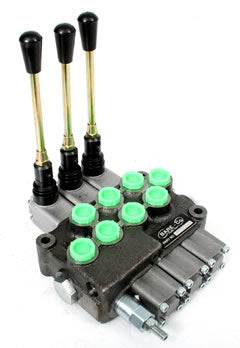

• B-8475: Three spool, double acting, open centre

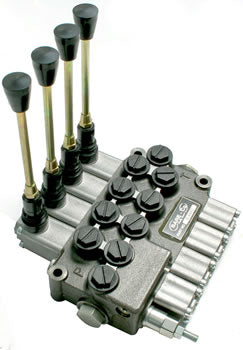

• B-8482: Four spool, double acting, open centre

Technical Specifications

• Flow rate: 45 litres per minute
• Preset relief valve: 2,000 PSI (fully adjustable)
• All ports: 3/4" UN O-ring thread
• Supply and return ports located on top and side
• Vertical or horizontal handle mounting options

Closed Centre Applications

These are open centre valves. For closed centre tractor hydraulic systems, a B8476 power beyond adaptor is available on request. With the adaptor fitted, adjust the relief valve in the control valve above pump pressure. Technical data diagrams explaining open centre, closed centre, and power beyond configurations are available on request.

Handle and handle housing kits are available as spare parts.
