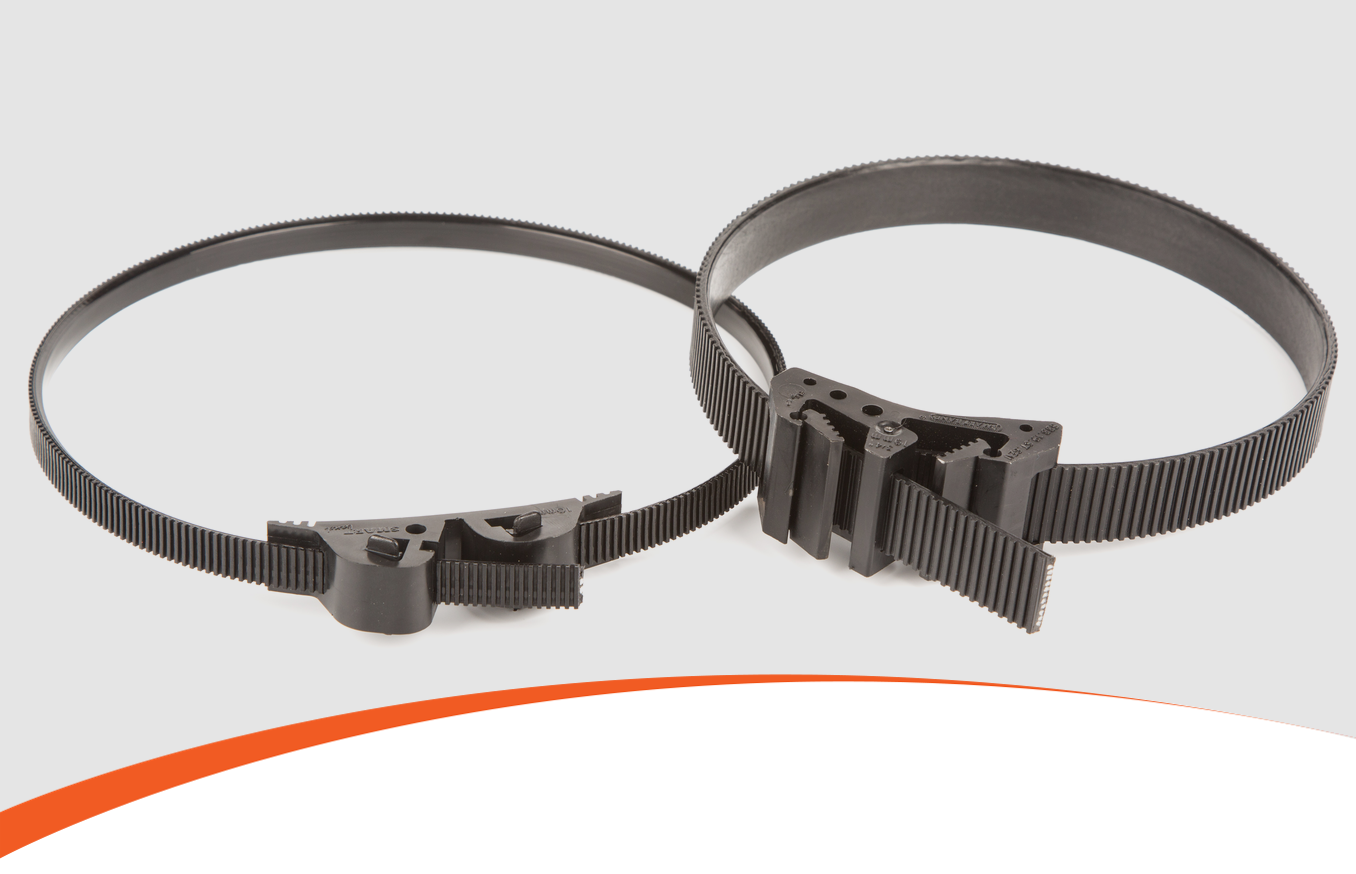

1007 Series SMART BAND-SMART TIE-SMART BAND COMPACT Nylon Banding System

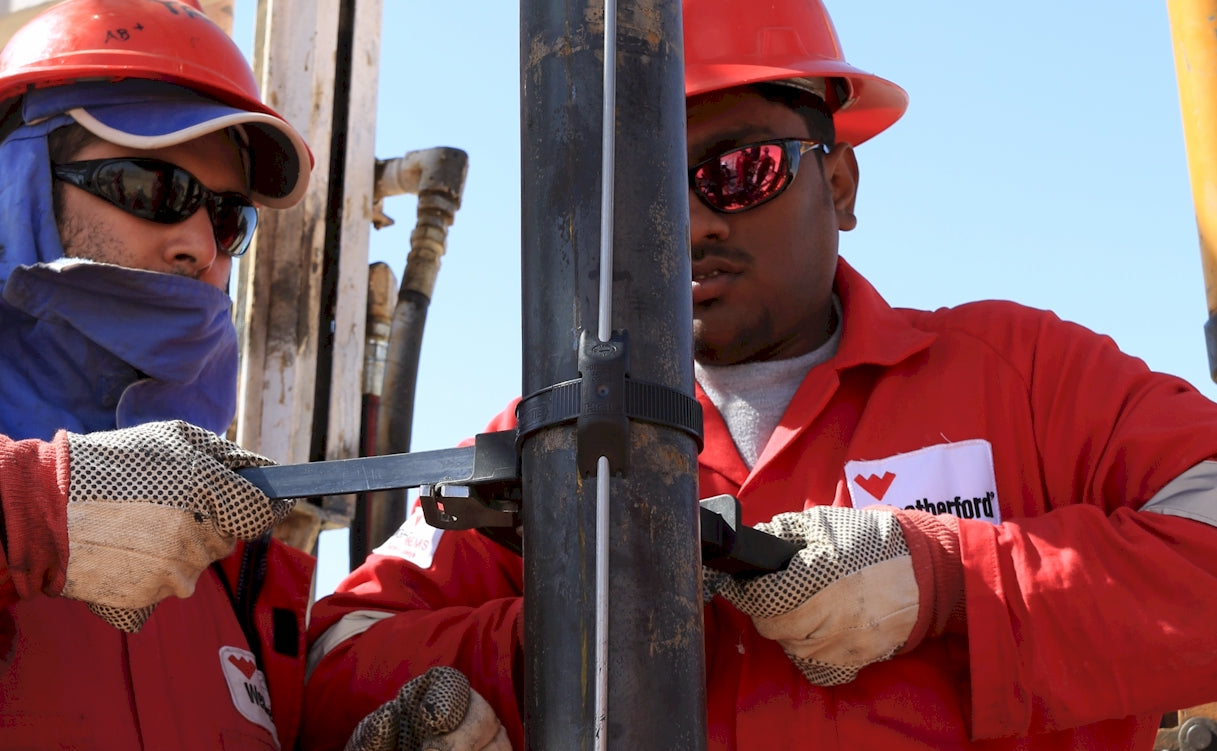

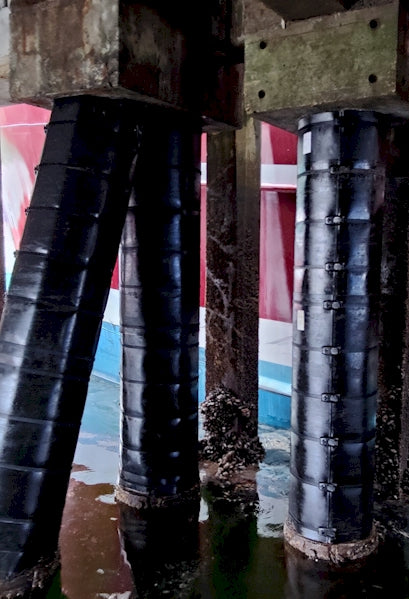

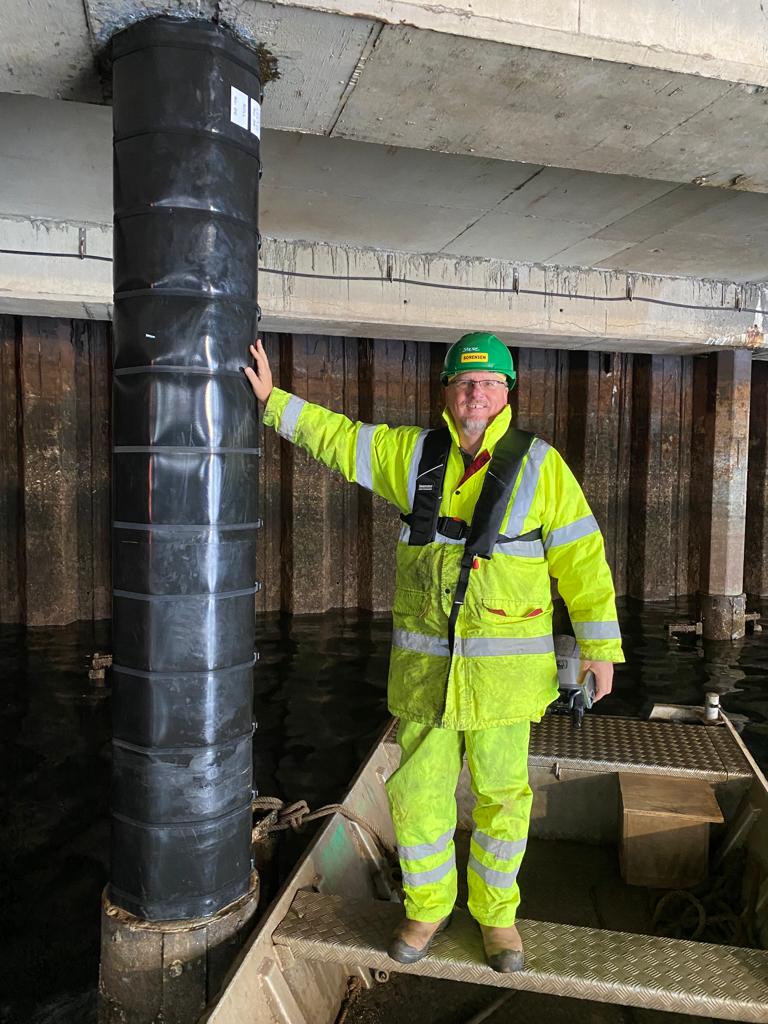

SMART BAND is a cut-to-length nylon banding system for securing pipes, cables, hoses and structural elements in environments where metal banding corrodes or where non-conductive, non-magnetic fastening is required. Applications include downhole mining, bridge and wharf pile protection, subsea installations, sign fixing and above or below water-level cable attachment.

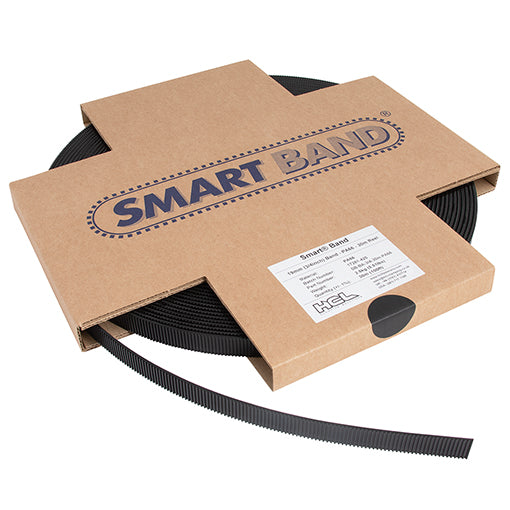

Band and buckle options

• SB-BA-1/4-30: 7mm wide PA66 band, 30m roll
• SB-BU-1/4-ST: 7mm buckle, 10-pack
• SB-BA-3/8: 10mm wide PA66 band, 30m roll
• SB-BU-3/8-ST: 10mm buckle, 10-pack
• SB-BA-3/4 POM-30: 19mm wide POM band, 30m roll
• SB-BA-3/4 POM-60: 19mm wide POM band, 60m roll

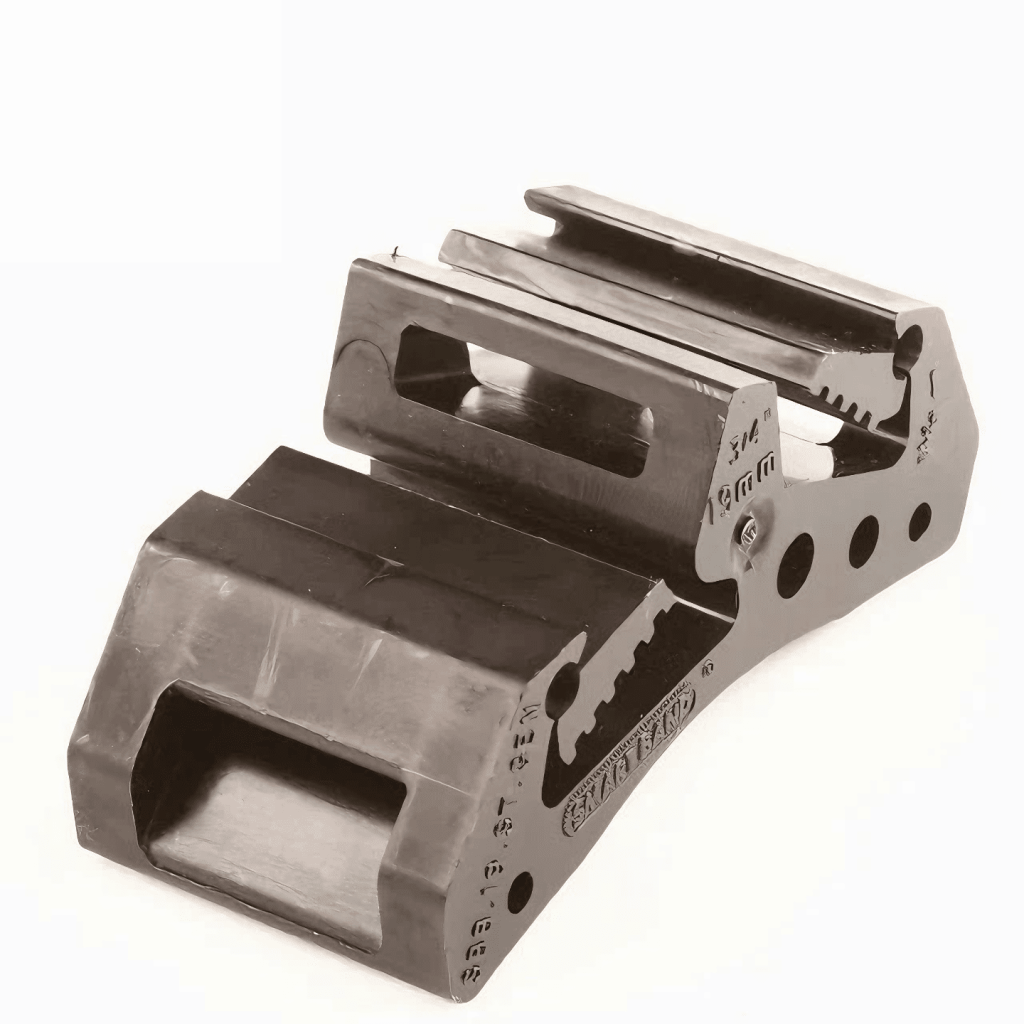

• SB-BU-3/4: 19mm buckle, 10-pack

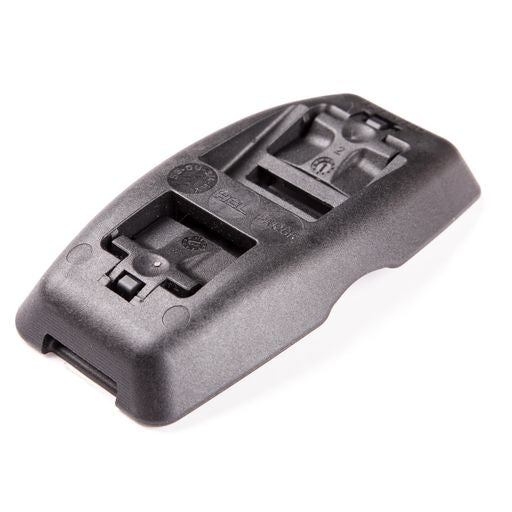

• SB-BU-3/4LP: 19mm low-profile buckle
• SB-BA-1-1/4: 32mm wide PA12 band, 30m roll
• SB-BU-1-1/4: 32mm low-profile PA12 buckle, single

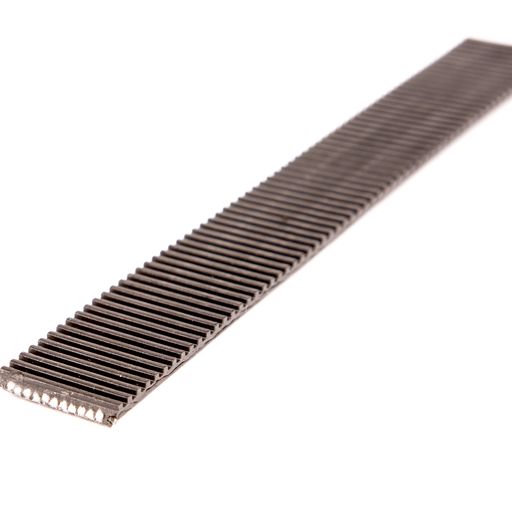

The 7mm and 10mm band and buckles are made from PA66 (Nylon 66). The 19mm band is POM (Acetal) with 25% glass fibre, giving high wear resistance and minimal thermal expansion. The 32mm band and buckles are PA12 (Nylon 12) with 20% glass fibre fill. Strength up to 440 kgf depending on size selected. Band is cut to required length from the roll, minimising waste.

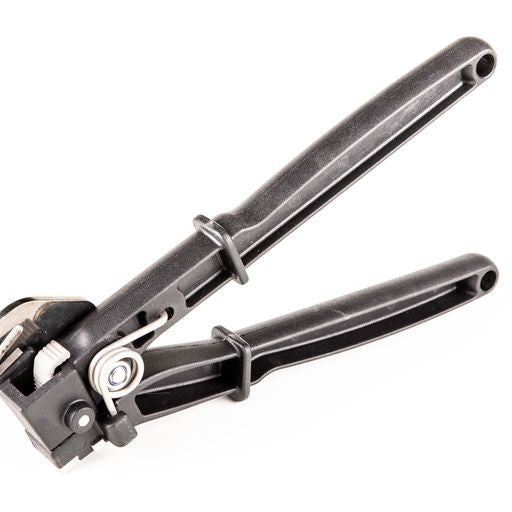

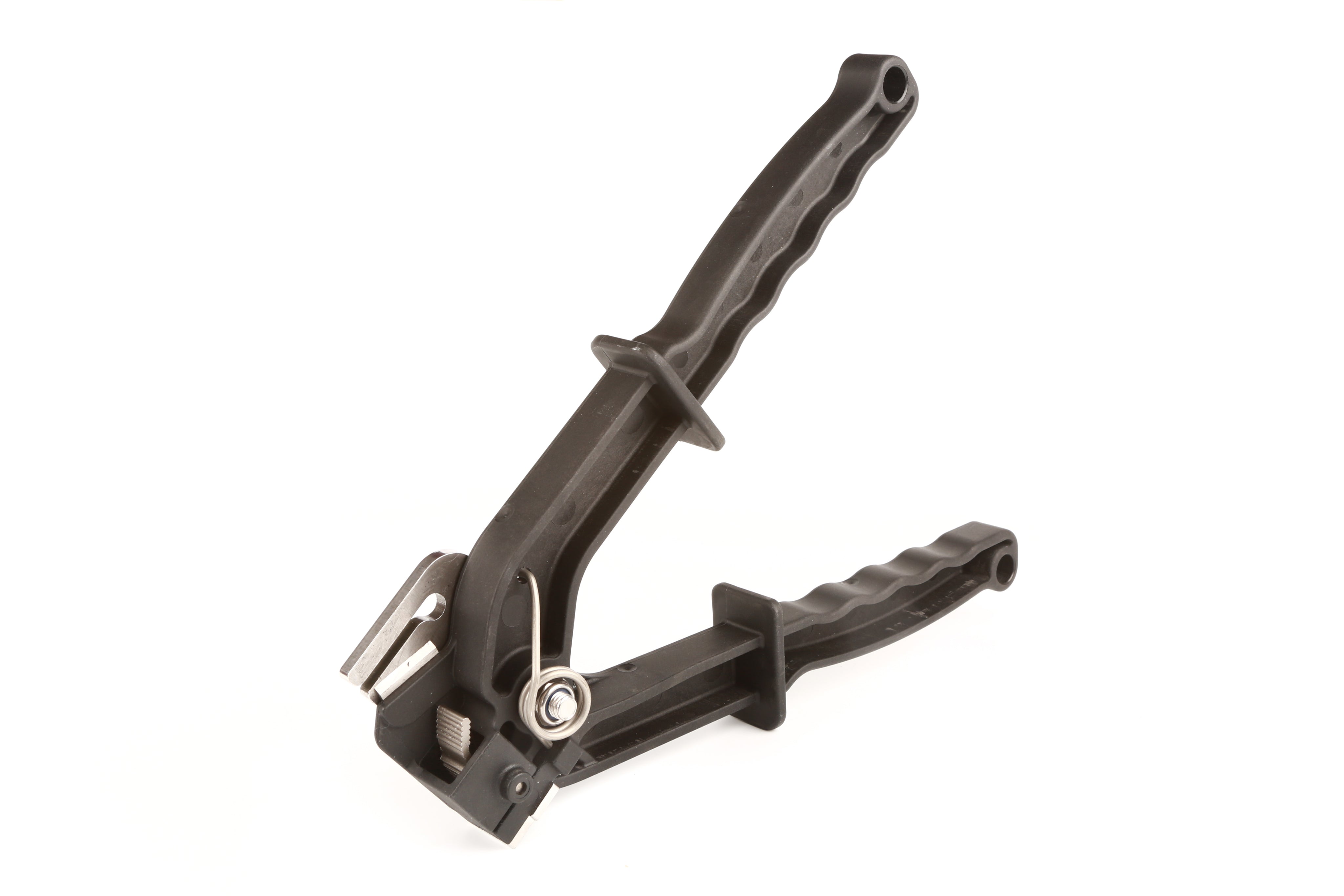

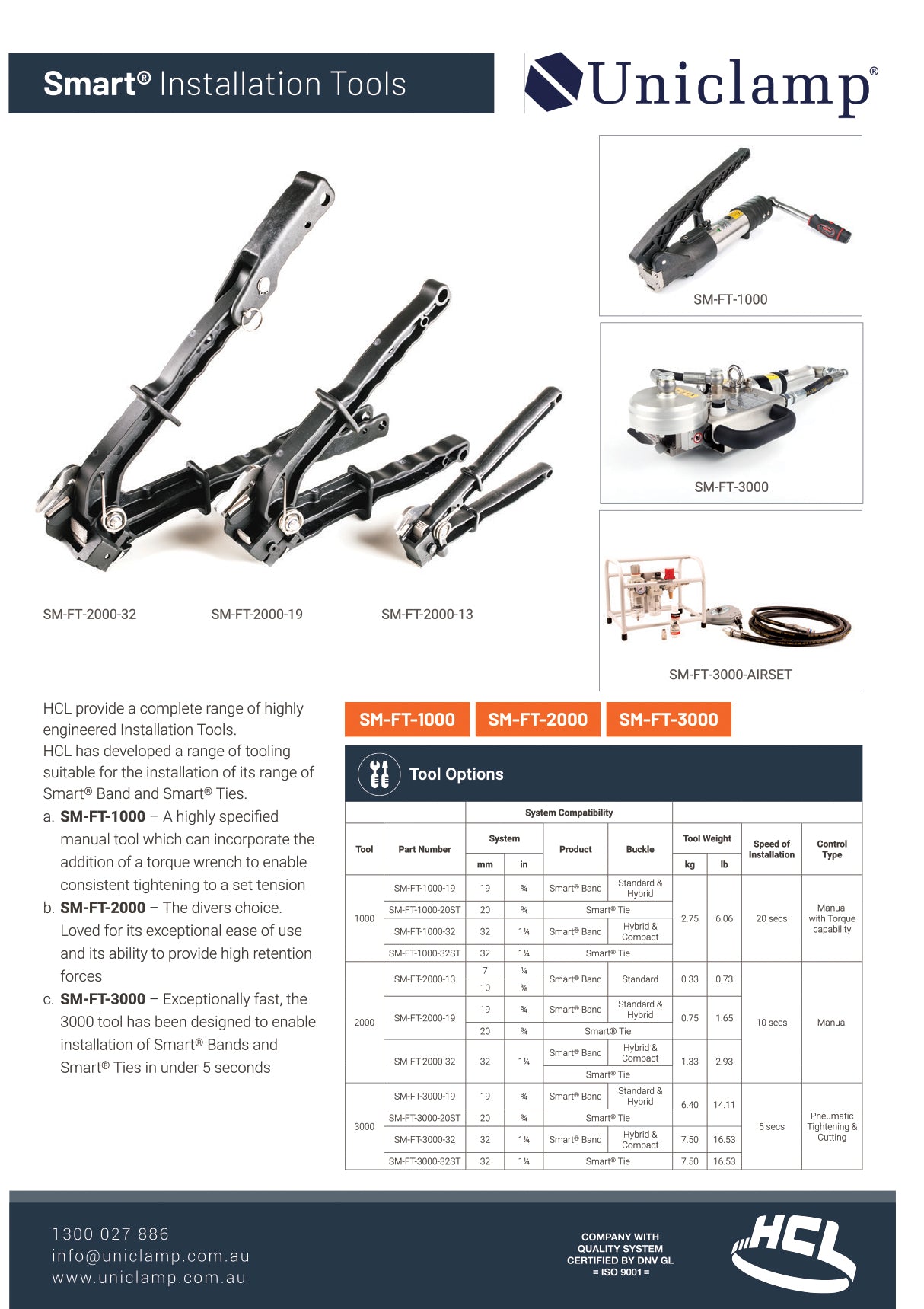

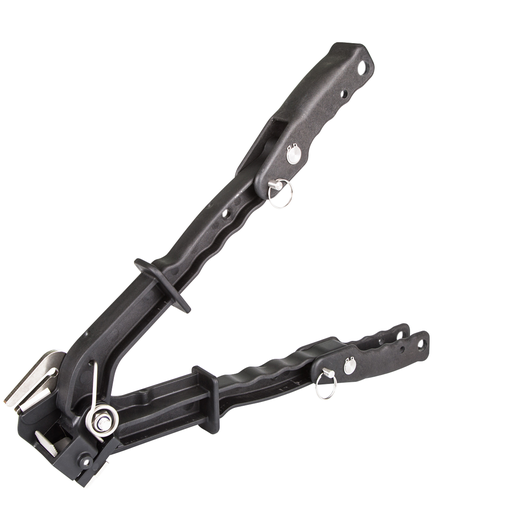

Fitting tools are available separately (see 1007 Series SMART BAND Tools listing). Detailed technical specifications available on request. Australia-wide shipping.

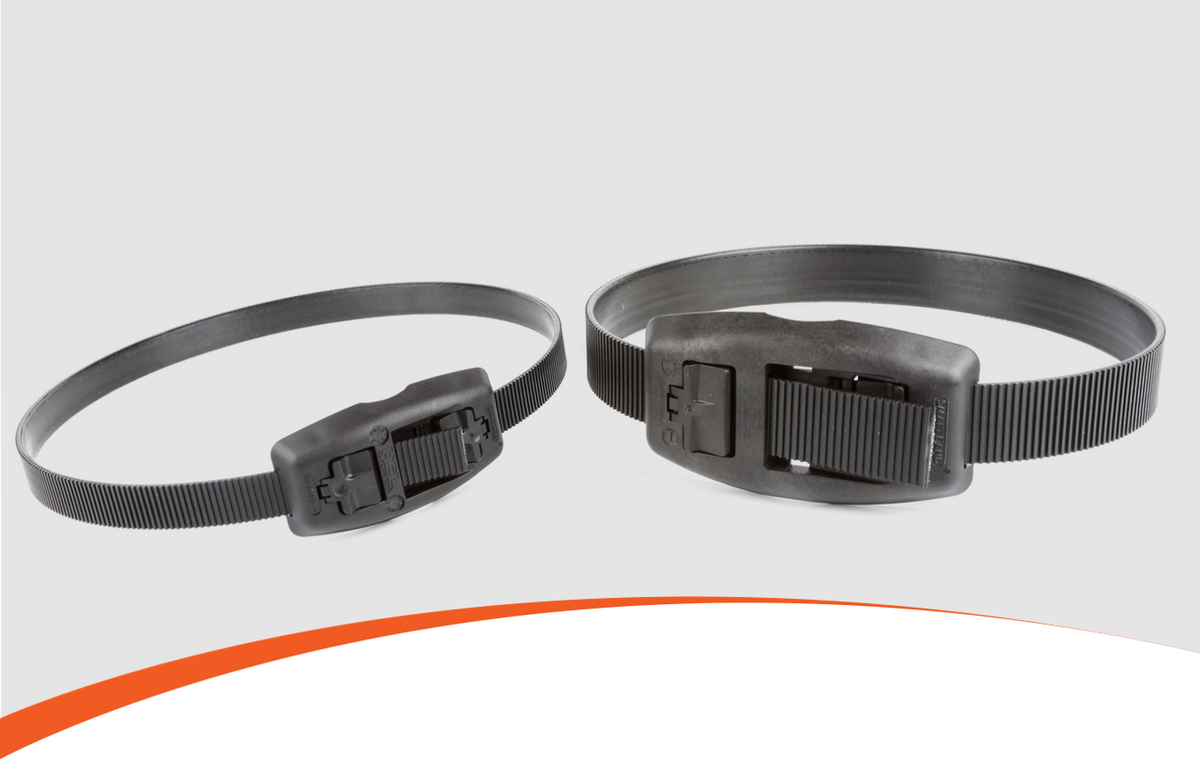

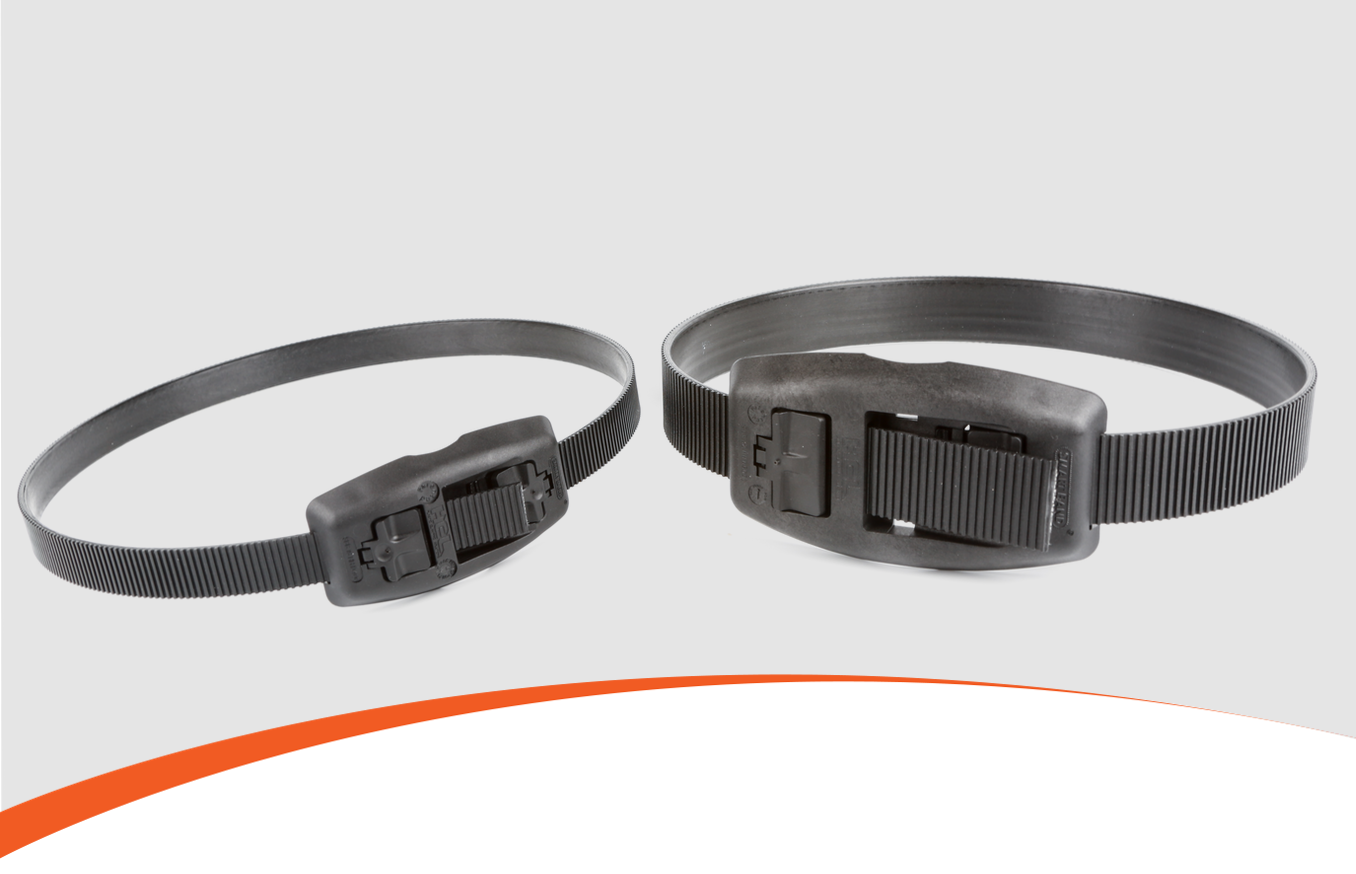

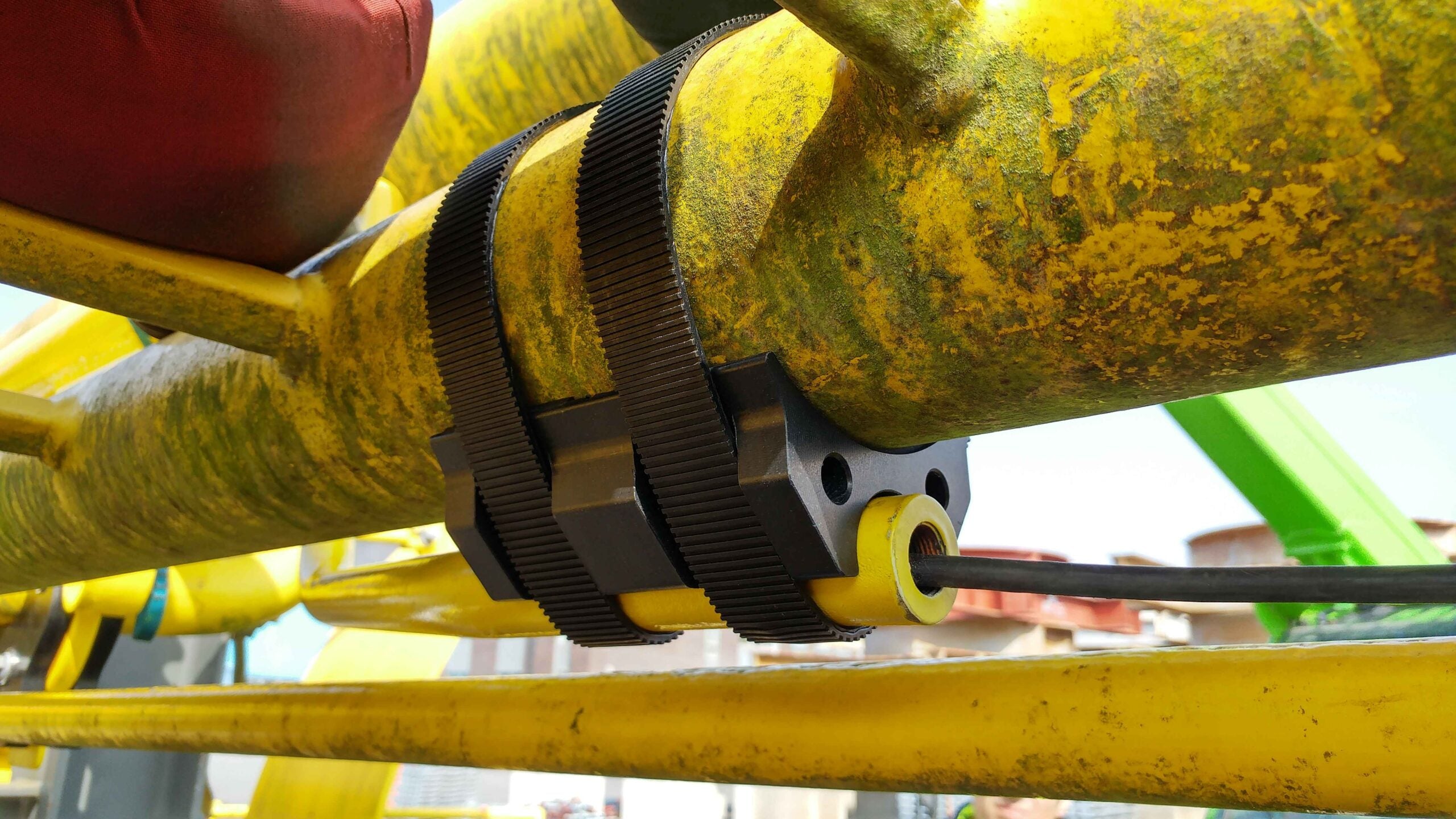

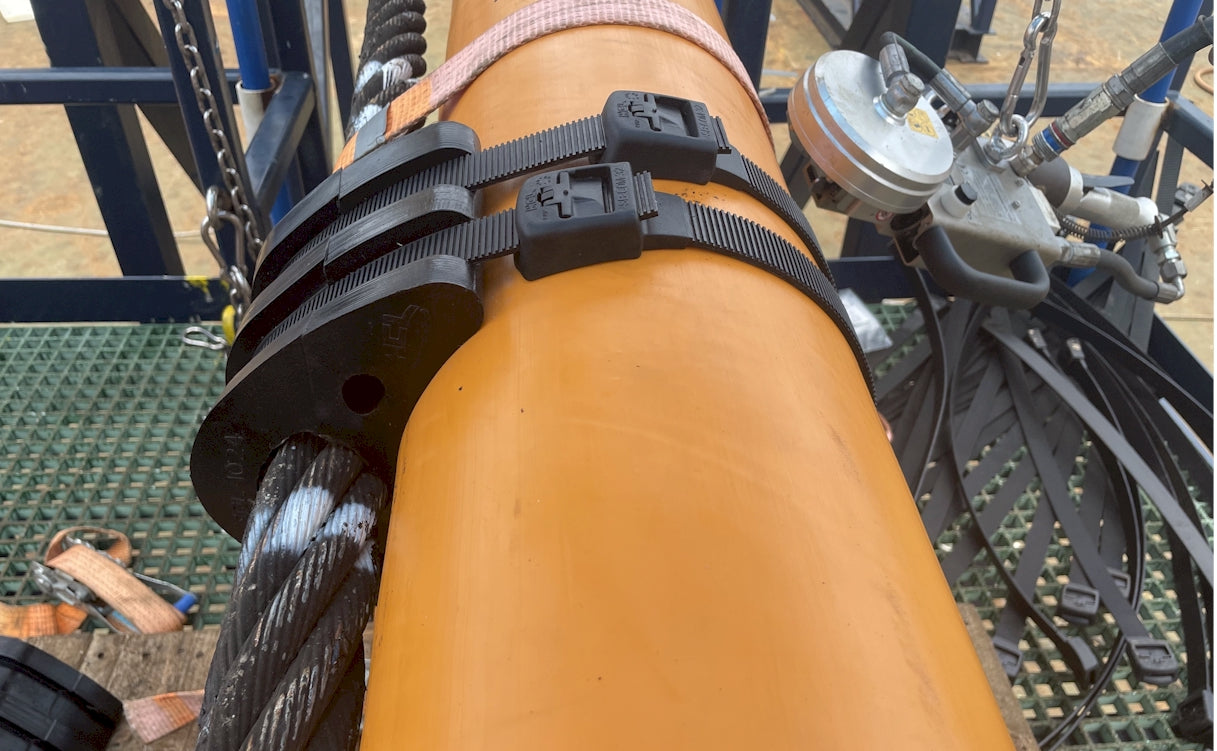

The Smart Band Compact Banding system is a step forward in the evolution of the Smart Band range.These bands combine the best features of both the Smart Tie  and the Smart Band Hybrid system to create a superior product.The Smart Band Compact reduces the size of the Hybrid Buckle by over 60% allowing it to be installed on applications as low as 100mm in diameter.Yet unlike the Smart Tie it contains glass fibre reinforced yarn allowing it to maintain the superior strength retention and relaxation features of the Hybrid system.The innovative technology of over moulding the buckle directly onto the the band has actually produced an increase in the strength and retention of the compact system.The compact system is now perfectly placed to provide a high strength high retention and long life and a quick to fit strapping method for all major subsea applications including VIV Stake attachment on risers down to 100mm.Two lengths to choose from in 19mm and 32mm band widths see variants listed above.Custom lengths can be supplied on special order for a customers specific requirements.

Key Features:

. 60% reduction in buckle size compared to Hybrid system.

. Improved minumum diameter 100mmm for 19mm and 200mm for 32mm.

. Increase in strength of over 10% for both 19mm and 32mm systems.

. High load feature for Stinger installation.
