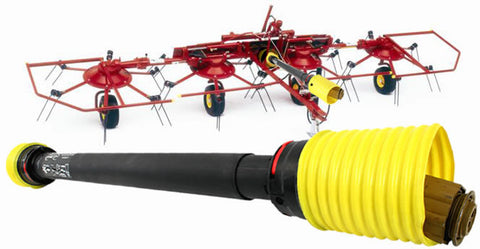

Bareco European-type PTO shafts with integral torque limiter, available in two ratings: AT4130 (35HP) and AT6130 (64HP). Both shafts have a friction slip clutch built directly into the shaft assembly. When the implement hits an overload, the clutch slips at the preset torque threshold and disengages drive before the machine, gearbox, or PTO suffers damage.

This differs from a standard PTO shaft, which transmits all load directly to the implement with no overload protection. The torque limiter is particularly valuable on post hole diggers and hay equipment where striking a rock or jam can generate sudden shock loads well above the rated torque.

These shafts apply to the machines listed below:

HAYB0B 300-CLASS VOLTA 450-540.FORD NEW HOLLAND 156-157-158-162-163-169-254-255. HESSTON 3710-3717- KUHN GF22-GA300GT-GA4101GT-GF4000-GF5000T. LELY S250PT-S300PT-Lotus 460. LONG 2074-2075-2076 NEW IDEA 4210-4217 NIEMEYER HR361-441-451-521-531-551- OTMA GS 2/S-GS2-GS4/L-GS4. PANORAMA PT110-PT170. ROSSI G2LP-G2P-G4L-G4LPE- SITREX 2G-252-2GL-302-ST384-ST520-4G-384-4GL-484. TONUTTI GT230-250-310-GT380-440-500-540. VICON Fanex 463-523-553. VERMEER TD120-TD200.

Variants and specifications

• AT4130 - 35HP, closed length 150cm, torque release rating 900 Nm, 1 3/8" x 6 spline yokes
• AT6130 - 64HP, closed length 150cm, torque release rating 1,200 Nm, 1 3/8" x 6 spline yokes

Both shafts use the standard 1 3/8" x 6 spline connection and are supplied with safety guard. Suited to post hole diggers, haybob rakes, and any implement where sudden overload is a risk. Spare parts are available.

      . AB4150-35HP Closed length 170cm 1 3/8" x 6 spline  Quick Release yokes on each  end (no torque limiter fitted) Suit Vicon RS410T-RS510T and Zweegers Fanex 400-500-HS360 Hay Rakes.
