Constant Torque Hose Clamps: What They Are, How They Work and When You Need Them

Last updated: May 2026

A constant torque hose clamp (also called a constant tension clamp or CT clamp) is a spring-loaded hose clamp designed to maintain consistent clamping force through temperature cycling, vibration and hose compression set. Unlike a standard worm-drive clamp that is set once and stays fixed, a constant torque clamp continuously compensates for dimensional changes in the hose and fitting.

Why Standard Clamps Can Lose Seal Integrity

Standard worm-drive clamps work well for static applications where temperature is stable and hose material does not compress significantly over time. The problem arises in two common scenarios:

Temperature cycling

When a hose and fitting are made of different materials — for example, a rubber hose on a metal fitting — they expand and contract at different rates as temperature rises and falls. Over many heat cycles, the hose compresses slightly at the clamp contact point and the fitting diameter changes. A fixed-tension clamp loosens progressively and no longer provides the original clamping force.

Hose compression set

Rubber and silicone hose under constant compression deforms over time — this is called compression set. The hose takes a permanent set at the clamp contact point, which reduces the contact force of a fixed clamp. In high-temperature environments this process accelerates.

Constant torque clamps address both mechanisms by maintaining active spring tension that adjusts as the hose and fitting change dimensions.

How a Constant Torque Clamp Works

The spring mechanism is integrated into the band design. A section of the band is formed into a spring element — typically a wave spring or a folded section of the band itself. When the clamp is tightened, this spring element is compressed. As the hose contracts or compresses, the spring extends to maintain contact force.

The result is a clamp that stays in its designed clamping force range across a much wider set of conditions than a fixed-tension clamp.

Where Constant Torque Clamps Are Used

Constant torque clamps are used in applications where seal reliability across temperature and time is more important than lowest cost:

• Automotive coolant hoses — the primary application. Coolant systems cycle from cold to operating temperature continuously. Coolant hose connections are high-stakes — a leaking coolant hose can destroy an engine. CT clamps are the OEM fitment on many passenger vehicle and commercial vehicle coolant systems.
• Turbocharger connections — turbo inlet and outlet hoses operate at elevated temperatures with significant vibration
• Industrial hot fluid lines — process piping for hot water, steam condensate, and chemical lines in temperature-variable environments
• HVAC and refrigeration systems — flexible hose connections in systems that cycle through wide temperature ranges
• Marine engine cooling — raw water cooling systems with rubber hose on metal fittings

Selecting a Constant Torque Clamp

Size

Constant torque clamps are sized by the hose outside diameter, the same as standard clamps. Most CT clamps have a relatively narrow adjustment range — measure the hose OD accurately and select the appropriate clamp size. Do not try to adapt a clamp to a hose it is not sized for.

Material

Most constant torque clamps are manufactured in stainless steel. The spring element requires a material that can flex repeatedly without fatiguing — standard mild steel is not suitable for the spring section. Specify stainless steel for any application involving moisture, high temperature or engine bay environments.

Temperature rating

Check the clamp’s temperature specification against your application. For standard automotive coolant hose clamps on passenger vehicles, most CT clamps are rated well above normal operating temperatures. For higher-temperature applications (turbo systems, industrial), check the specification explicitly.

Installation

Constant torque clamps are installed the same way as standard clamps — positioned over the hose-to-fitting overlap zone and tightened. The key difference is that the final tightened position places the spring element in its working range: partially compressed, with remaining travel available to compensate for hose dimensional changes.

Do not overtighten constant torque clamps. Overtightening compresses the spring fully (coil-bound condition), at which point it no longer provides tension compensation and the clamp functions as a fixed-tension clamp. Follow the manufacturer’s torque specification.

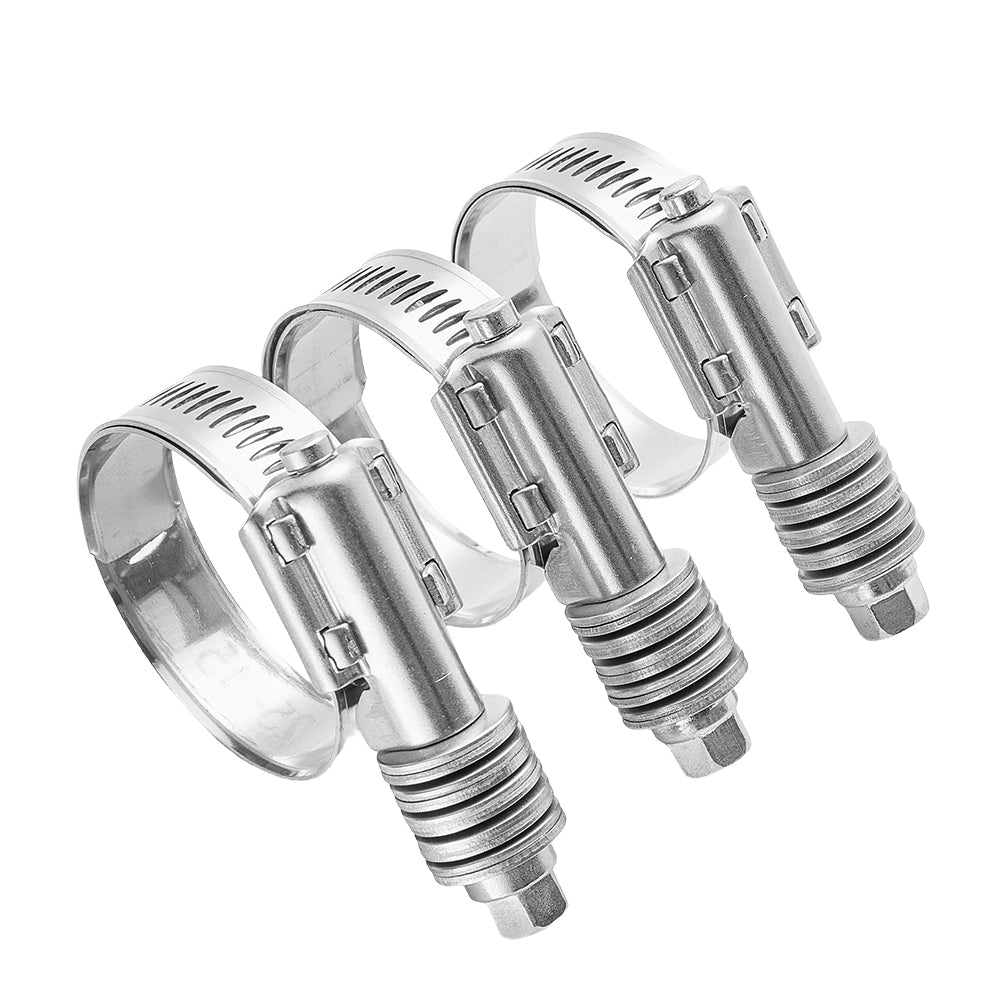

HCL Constant Torque Clamps

HCL Fasteners produces a constant torque clamp range suitable for automotive and industrial applications. The HCL CT clamp range is manufactured in stainless steel with the spring element integrated into the band design.

Uniclamp is the Australian distributor for HCL Fasteners. The constant torque clamp range is available through the Uniclamp online store. Contact us if your application requires a specific size or configuration outside the standard stocked range.
