Slasher Gearbox Replacement: How to Diagnose Failure and Choose the Right Bareco Gearbox

Last updated: May 2026

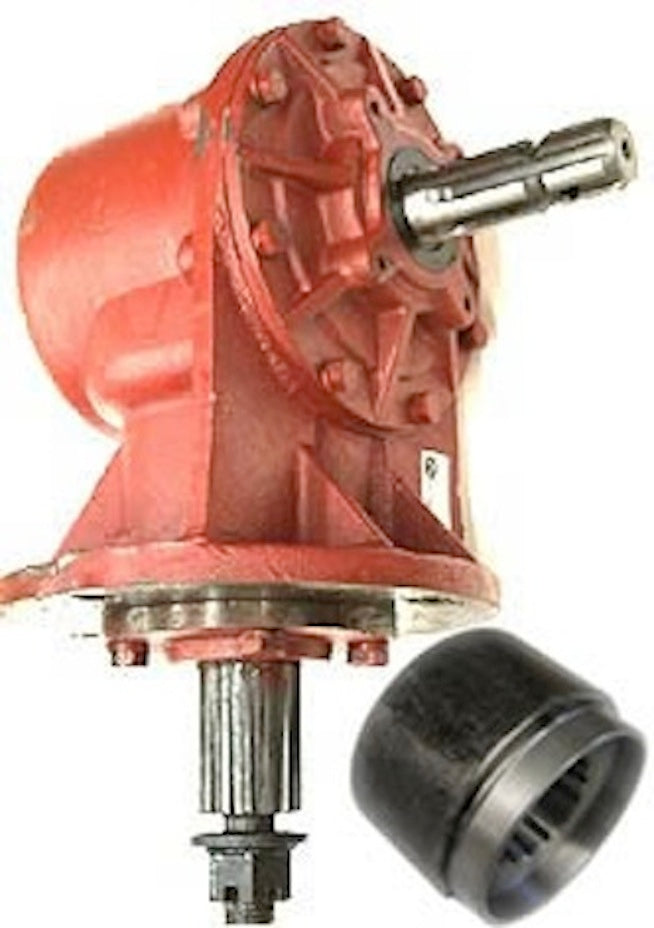

A slasher gearbox is the right-angle gearbox that transfers power from the tractor PTO shaft to the slasher blade spindle. When it fails, the slasher stops cutting. This guide covers how to identify gearbox failure, when replacement is the right call, and what to look for when choosing a Bareco replacement gearbox.

How a Slasher Gearbox Works

The PTO shaft from your tractor spins at 540 RPM. The slasher gearbox takes that horizontal rotation and converts it 90 degrees to drive the vertical blade spindle. Most slasher gearboxes use a bevel gear set to achieve this change of direction, with the ratio typically set so the blade spins faster than the PTO input — often between 1:1.5 and 1:2 depending on the gearbox model and slasher design.

The gearbox housing is filled with gear oil, which lubricates the bevel gears and bearings. When the oil level drops or the seals fail, the gears run dry and wear accelerates rapidly.

Diagnosing Slasher Gearbox Failure

Most gearbox failures give clear warning signs before they become complete failures. Catching them early is the difference between a seal replacement and a full gearbox replacement.

Warning signs — investigate immediately

• Oil leaking from the gearbox housing or output shaft seal. The most common early sign. Oil on the grass underneath or around the blade spindle means a seal is failing. Don't run it dry.
• Unusual noise during operation. A healthy gearbox runs quietly. Grinding, whining or knocking sounds indicate gear or bearing wear. The louder and lower-pitched the noise, the more advanced the damage.
• Excessive vibration. Some vibration is normal, but a sudden increase often indicates a loose blade, failed bearing or damaged gear teeth.
• Overheating. If the gearbox is hot to touch after normal use, it may be running low on oil or have a damaged internal component generating excess friction.
• Slipping or inconsistent blade speed. If the blade slows under load or the drive feels inconsistent, internal gear wear is likely.

Stop immediately if

• You hear a sudden loud crack or bang during operation
• The blade stops while the PTO is still engaged
• The gearbox housing is cracked or visibly damaged
• There is smoke or burning smell from the gearbox area

Running a damaged gearbox risks destroying the housing, bending the blade spindle and creating a safety hazard from thrown debris.

Repair vs Replacement

Not every gearbox failure requires full replacement. The right answer depends on the failure type and the age of the gearbox.

When to repair

• Leaking seals only. Shaft seals and housing gaskets are serviceable parts. If the gears and bearings are in good condition, a seal kit and oil change is the right fix.
• Single bearing failure. Bearings are replaceable if the housing is undamaged and the gears are intact. Requires disassembly and correct bearing identification.
• Low oil level. If caught early before gear damage occurs, a flush and refill may be all that’s needed.

When to replace

• Cracked or broken housing. A cracked housing cannot be reliably repaired. Replace the unit.
• Stripped or chipped gear teeth. Gear sets are difficult to source individually and expensive to replace. Full gearbox replacement is usually more cost-effective.
• Bent output shaft or blade spindle. This is a structural failure. Replace the gearbox assembly.
• Multiple simultaneous failures. When seals, bearings and gears have all failed together, the gearbox has reached end of service life. Rebuild cost will exceed replacement cost.
• Unknown service history. A secondhand or unknown-history machine where the gearbox has run dry at some point is a replacement candidate, not a repair candidate.

What Makes a Good Replacement Gearbox

Not all replacement gearboxes are equal. Here’s what matters when choosing one.

Correct mounting pattern and shaft specs

The replacement must match the original on three dimensions: the mounting flange bolt pattern, the input shaft diameter and spline count, and the output shaft (blade spindle) diameter. Measure the original before ordering if you don’t have the slasher’s make and model documentation.

Gear ratio

Slasher gearboxes typically run 1:1.5 to 1:2 ratios. Match the original ratio. A different ratio will change blade tip speed, affecting cut quality and potentially stressing the drivetrain.

Housing quality

Cast iron housings are more durable than pressed steel or alloy. For a working farm machine, a cast iron gearbox will outlast cheaper alternatives.

Seal quality and serviceability

Check that the replacement uses standard-size shaft seals that are available from bearing suppliers. Proprietary seals that only come from the gearbox manufacturer become a problem when the machine outlives the parts supply.

Oil capacity and type

Check the fill volume and confirm what gear oil grade is required. Most slasher gearboxes use a GL-5 rated 80W-90 or 85W-140 gear oil. Don’t assume — check the specification.

Bareco Slasher Gearboxes

Bareco manufactures and supplies replacement slasher gearboxes to suit a wide range of Australian slasher brands. The range covers common blade spindle configurations across both older and current production machines.

What Bareco gearboxes offer:

• Cast iron housings for durability in working conditions
• Standard shaft seals sourced from mainstream bearing suppliers
• Correct gear ratios matched to original specifications
• Pre-filled or supplied with appropriate gear oil specifications

If you’re unsure which gearbox suits your slasher, contact Uniclamp with the slasher make, model and blade spindle diameter and we’ll confirm the correct part before you order.

Installation Notes

A gearbox replacement is straightforward if you follow the steps in order.

1. Disconnect the PTO shaft before starting any gearbox work.
2. Drain the old gearbox oil before removal to avoid spillage.
3. Photograph the original mounting before unbolting, so you have a reference for reassembly.
4. Check the blade spindle condition while the gearbox is off. If the spindle is worn or bent, address it now.
5. Torque the mounting bolts to spec — undertorqued bolts loosen under vibration, overtorqued bolts crack the housing.
6. Fill with gear oil before first use and check the level with the machine on level ground.
7. Run at low PTO speed initially and check for leaks and noise before returning to full operation.

Related Parts

A gearbox replacement often reveals adjacent wear. While the machine is apart, check:

• PTO shaft condition — worn CV joints or a bent shaft will stress the new gearbox immediately
• Blade bolt and blade carrier condition — a bent carrier from a previous impact is often what caused the gearbox failure
• Drive belt or coupling condition (if applicable to your slasher design)

Uniclamp stocks Bareco slasher gearboxes, PTO shafts and slasher blades. If you need to replace adjacent components at the same time, contact us to confirm compatibility across the full drivetrain.
