A T-bolt clamp (also called a T-bolt band clamp or T-bar clamp) is a heavy-duty hose clamp designed for high-performance and high-pressure applications where a standard worm-drive clamp is not adequate. They are the standard fitment on turbocharged intercooler systems, performance intake piping, and industrial hose connections that require consistent clamping force at elevated temperatures and pressures.
How a T-Bolt Clamp Works

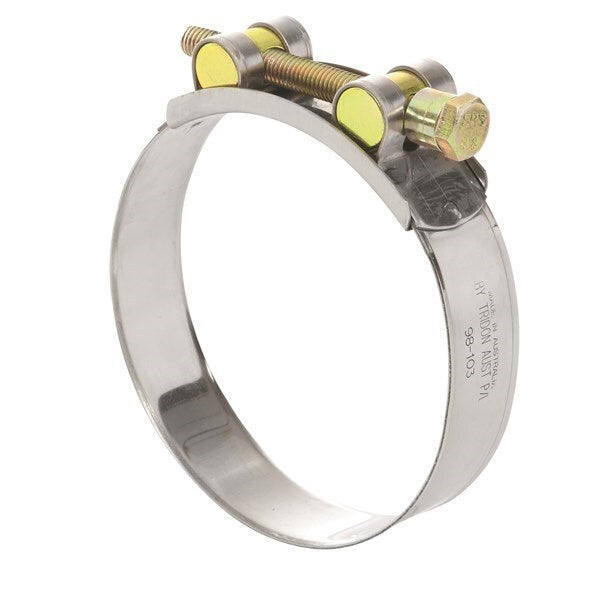

The design is different from a worm-drive clamp. Rather than a screw threading through the band itself, a T-bolt clamp uses a smooth, continuous band with a T-shaped bolt and a captive nut that bridges across a gap in the band.
When tightened, the nut draws the T-bolt through a barrel that spans the band gap, pulling the band into a perfect circle. This creates uniform radial clamping pressure around the entire circumference of the hose — which is the critical performance difference between a T-bolt clamp and a worm-drive clamp.
A worm-drive clamp is inherently asymmetric: the screw mechanism creates a high-pressure point at the screw location and lower pressure around the rest of the circumference. Under vibration, this can lead to localised hose deformation and eventual leaking. A T-bolt clamp eliminates this because the clamping force is distributed evenly.
Where T-Bolt Clamps Are Used
T-bolt clamps are used wherever the application demands more than a standard worm-drive clamp can reliably deliver:
- Automotive turbo and intercooler systems — silicone boost hoses, intercooler pipes, intake ducting
- High-performance and motorsport applications — where vibration, heat cycling and boost pressure demand consistent seal integrity
- Industrial hose connections — compressed air, hydraulic return lines, coolant systems
- Marine applications — exhaust hoses, cooling water hoses, bilge systems
- Agricultural machinery — turbo inlet pipes, intercooler connections on modern tractor engines
Construction and Materials
Band material
The band is the primary structural component and determines corrosion resistance. Common options:
- 304 stainless steel — standard for most automotive and industrial applications. Good corrosion resistance, suitable for most environments.
- 316 stainless steel — higher chloride resistance. Specified for marine environments or applications with exposure to aggressive chemicals.
- Zinc-plated mild steel — lower cost, limited corrosion protection. Not appropriate for high-moisture environments.
For automotive boost systems, 304 stainless is the standard. For marine or coastal environments, 316 is the correct specification.
Band profile
Most T-bolt clamps use a smooth inner band face that contacts the hose surface uniformly. Some designs include a ribbed or textured inner surface to increase grip — this is useful where hose slippage is a concern, but can cause hose surface damage on thin-wall silicone hose if overtorqued.
Liner or cushion
Higher-end T-bolt clamps include a liner between the band and the hose — a thin silicone, neoprene or PTFE strip that prevents the metal band from cutting into soft hose material under vibration. For silicone hoses, a lined clamp is the better choice where long service life is required.
Sizing T-Bolt Clamps
T-bolt clamps are sized by the hose outside diameter they are designed to clamp. This is not the same as the hose inside diameter or pipe OD.
The clamp must be sized so that it reaches its target torque within its designed adjustment range — a clamp that is undersized cannot be tightened enough; one that is oversized cannot be tightened at all in the correct range.
Measure the outside diameter of the hose as installed on the fitting (not the hose in free state). Use this measurement to select the correct clamp size.
Most T-bolt clamps have a narrow adjustment range — typically plus or minus 2–3 mm from nominal. This is by design: the uniform-clamping-force advantage depends on the clamp operating close to its ideal diameter. If you need to cover a range of hose sizes, you need multiple clamp sizes.
Torque Specification
T-bolt clamps are designed to be tightened to a specific torque — not by feel. Overtorquing damages the hose, deforms the band and can strip the nut. Undertorquing leaves the joint at risk of leaking under pressure or vibration.
Most automotive T-bolt clamps for silicone boost hose applications are specified in the range of 4–8 Nm. Check the manufacturer’s specification for the clamp you are using and use a torque wrench for critical applications. Do not use an impact driver.
Installation
- Clean the hose and fitting surfaces before fitting the clamp
- Position the hose on the fitting to the correct depth — the hose should overlap the fitting by at least the clamp width
- Position the clamp centred on the hose-to-fitting overlap zone, not at the edge of the hose
- Tighten progressively — do not tighten to full torque in one turn
- Retighten after first heat cycle in high-temperature applications — silicone hose relaxes slightly when first exposed to heat
HCL T-Bolt Clamps
HCL Fasteners manufactures T-bolt clamps across a full size range for automotive and industrial applications. The HCL range is available in 304 stainless, with smooth band profiles suited to silicone and rubber hose applications.
Uniclamp is the Australian distributor for HCL Fasteners. The T-bolt clamp range is available in individual units and in bulk packs. If you require a specific size range, stainless grade or quantity not shown in the online store, contact us directly.
