A standard worm drive hose clamp works well on a round, smooth-walled hose under moderate pressure. Change any of those conditions - corrugated profile, oval cross-section, delicate laboratory tubing, a high-pressure hydraulic line - and its limitations show quickly. This guide covers where and why standard clamps fall short, and how UNEX hose clips solve those specific problems.
The Problem with Standard Worm Drive Clamps
Conventional worm drive clamps tighten from a single housing point. The band transmits force around the hose, but distribution is uneven: pressure is highest near the housing and drops off towards the opposite side. On a round, smooth hose this is generally adequate. On anything else, problems emerge.
On corrugated and ribbed hoses, the band bridges the ridges and contacts only the peaks. The valleys receive little or no clamping pressure, leaving leak paths even when the clamp is correctly torqued.
On oval or irregular profiles, the band tightens to fit the widest dimension. The narrower dimension gets over-clamped while the widest stays loose, and no amount of re-tightening fixes this.
On delicate tubing, the leading band edge and tightening housing can cut or abrade silicone, PTFE, and thin-walled laboratory tubing, particularly during repeated installation and removal.
How UNEX Clips Work Differently
UNEX hose clips use a patented double-loop mechanism that applies force uniformly around the entire hose circumference. Turning the adjustment screw opens the outer loop while simultaneously closing the inner loop, a geared action that distributes closing pressure evenly in all directions regardless of hose profile.
The smooth inner band contacts the surface without cutting or snagging. On corrugated profiles, UNEX makes contact across the full band width including between ridges, rather than bridging them. The clips are fully reusable: the mechanism does not deform on removal, so sealing performance is not degraded by repeated installation and removal cycles.
Laboratory and Scientific Applications

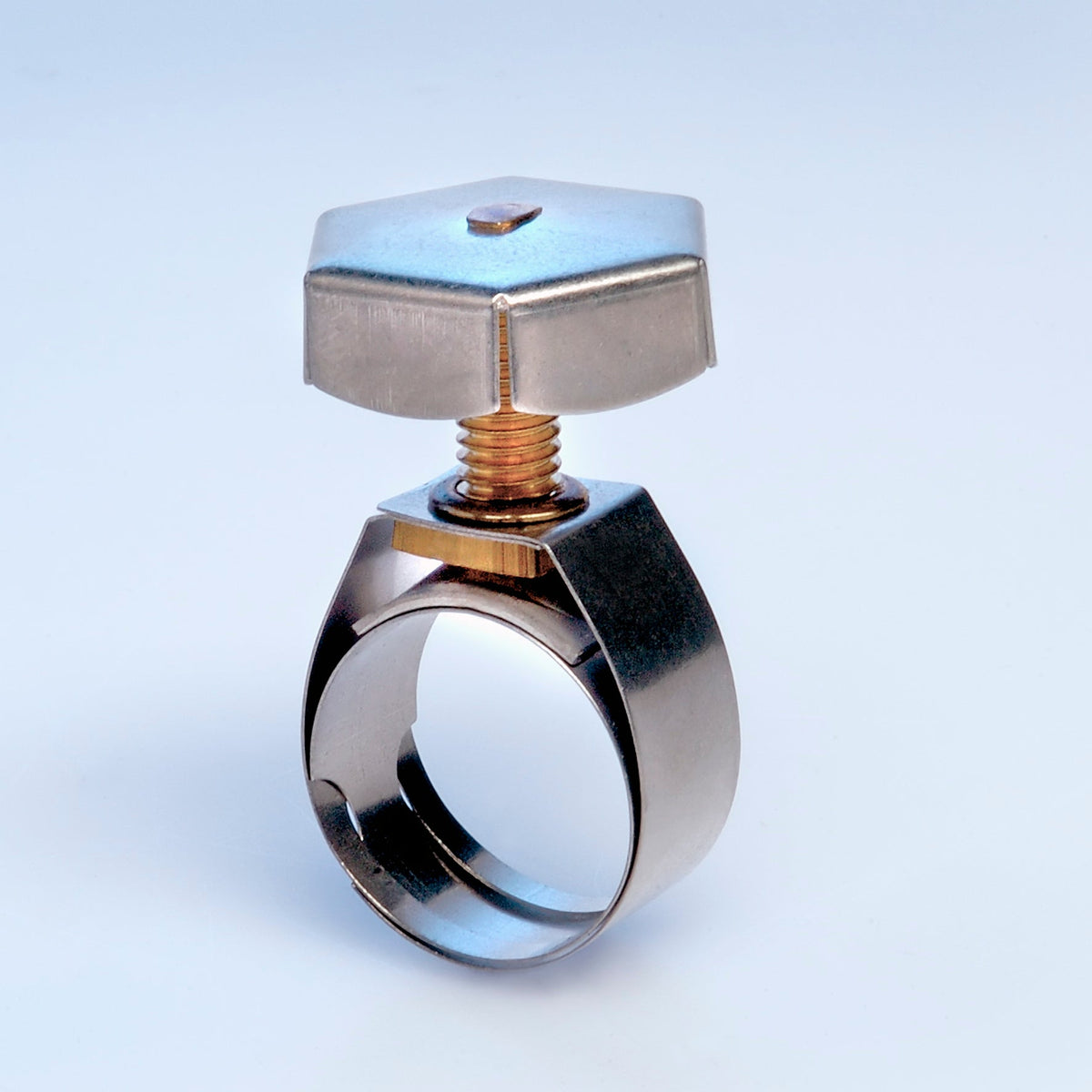

The H Type UNEX clip was specifically designed for laboratory environments. The stainless hexagonal cap tightens and releases by hand, with no screwdriver or torque wrench required. This allows gloved operation using latex or nitrile gloves without loss of grip or control.
At just 6 grams, the H Type adds negligible weight to glass or lightweight fittings. The smooth inner band is gentle on silicone tubing, glassware connections, and PTFE fittings that a metal housing or band edge could damage. Because the clips are reusable with consistent sealing performance across repeated cycles, they suit laboratory workflows where connections are regularly broken and remade.
For corrosive, chemical, or sterilised environments, the full 303/304 all-stainless variant removes the brass components from the assembly entirely.
Corrugated, Ribbed and Oval Hoses
This is the application where UNEX clips have the clearest advantage over conventional worm drives. Any hose or duct with a non-smooth external profile falls into this category:
- Corrugated flexible HVAC and ventilation ducting
- Ribbed silicone automotive intake and intercooler hoses
- Ribbed agricultural equipment coolant and hydraulic hoses
- Oval or eccentric cross-section profiles on older machinery
- Peristaltic pump and industrial process tubing
The even-distribution mechanism conforms to the profile under the band, applying pressure both at the ridges and into the valleys of corrugated surfaces. The seal follows the shape of the hose rather than the flat geometry of the band, producing consistent clamping contact around the full circumference.
High-Pressure Tubing Connections
UNEX clips are rated to 2,000 psi (130 bar) under ideal conditions, making them suited to hydraulic lines, pneumatic tubing, and pressure testing applications. This is particularly relevant for small-diameter high-pressure connections where band-type clamps are physically impractical and conventional hose fittings may not be an option.
The all-stainless variant is the appropriate choice for hydraulic and industrial environments where the standard brass screw and bush are unsuitable.
H Type or D Type: Choosing the Right Drive
| Variant | Drive Type | Best For |
|---|---|---|
| H Type | Hexagonal cap, hand tighten, no tools | Laboratory, clean-room, gloved operation, quick-access connections |
| D Type | Screwdriver slot | General purpose |
Size and Material Guide
The 9820 Series covers outside diameters from 7.4mm to 41mm in incremental steps. The closing variance per size is 3-5mm, providing a working window that does not require precise pre-measurement. Most laboratory tubing, small-bore hose, and corrugated ducting connections fall within this range.
Standard construction: 304 stainless steel band with brass screw and bush. The all-stainless 303/304 option is available for corrosive, salt-spray, or sterilised-environment applications. Available individually and in trade packs of 10, in stock in Australia.
View the 9820 Series UNEX Hose Clips and order online
Frequently Asked Questions
Can UNEX clips be used on standard round smooth-walled hoses?
Yes. UNEX clips work on any hose profile within their size range. Their advantage over standard clamps is most significant on corrugated, ribbed, and oval profiles, but they seal just as effectively on conventional round hoses.
Are H Type clips suitable for food-grade or medical applications?
The standard H Type uses a 304 stainless steel band and cap with a brass screw and bush. For food-contact or medical applications requiring full stainless construction, specify the all-stainless 303/304 variant. Confirm suitability against your specific compliance requirements before use.
What is the difference between H Type and D Type?
H Type uses a hexagonal cap that tightens and releases by hand without tools. D Type uses a standard screwdriver slot. For most applications they offer equivalent sealing performance. The choice depends on whether tool-free operation is required.
Can UNEX clips be reused after removal?
Yes. The double-loop mechanism does not deform on removal, and sealing performance is not degraded by repeated installation and removal cycles. This is one of the key advantages over conventional band-style clamps.
How do I choose the right size?
Measure the outside diameter of the hose or tubing in millimetres when connected to its fitting. Hoses expand slightly under pressure or when warmed, so measure in working conditions where possible. Select the clip size whose range brackets that measurement. Each size has a 3-5mm closing variance, so an exact match is not required.
