Bareco Tractor Seats: Suspension Seats, Pan Seats and How to Choose the Right One

Last updated June 2026

A worn tractor seat is one of those problems that is easy to ignore until it isn't. What starts as minor discomfort becomes genuine fatigue by mid-afternoon, and chronic back problems are a well-documented consequence of long hours on a seat with no suspension. Replacing a tractor seat is one of the highest-value modifications you can make to a working tractor — particularly if you're spending four or more hours in it each day.

Bareco has been supplying tractor seats to Australian farmers since 1944. The 9975 Series covers eight seat types from heavy-duty suspension seats for full-size tractors through to steel pan seats for vintage machinery. This guide covers the full range, explains the differences between types, and helps you choose the right replacement for your machine.

Browse the full Bareco tractor seat range →

Suspension Seats vs Pan Seats: The Key Difference

Suspension seats use a mechanical system — shock absorber, coil springs or both — to isolate the operator from ground vibration and impact. The seat base moves independently of the tractor frame, absorbing a significant portion of the energy that would otherwise transfer directly to the operator. For full-time agricultural operators, a quality suspension seat is not a luxury — it is a fatigue and long-term injury management tool.

Pan seats are fixed steel shells. No movement, no absorption — what the tractor feels, you feel. They are lighter, simpler and less expensive than suspension seats, and for occasional use or short work sessions they are perfectly adequate. For restoration work on vintage tractors, they are often the only period-correct option.

The decision comes down to hours in the seat and ground conditions. For a quick mow or an occasional-use tractor, a pan seat replacement is fine. For operators spending four or more hours a day on rough ground, a suspension seat is the right call.

The Bareco 9975 Series — Full Range

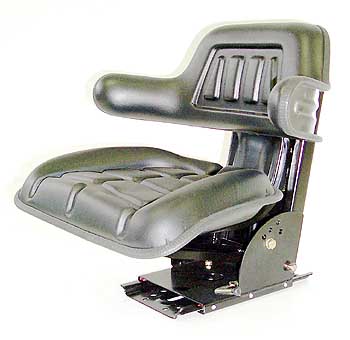

Heavy Duty Suspension Seats — B-9642, B-9643, B-9644

The Bareco Heavy Duty suspension seat is built for operators who spend serious hours on a working tractor. The 35mm shock absorber and twin coil spring suspension system absorbs over 40% of harmful vibration before it reaches the operator — a meaningful difference over a full working day on rough or uneven ground.

Specifications:

• Heavy duty 35mm shock absorber
• Twin coil spring suspension
• Operator weight adjustment: 60kg to 120kg
• 4mm thick heavy duty base
• 95mm thick high-density base cushion
• 2mm heavy duty vinyl upholstery
• Fore and aft slide runners with 100mm travel
• Approved seat belt mounting points
• Base drilling pattern suits Massey Ferguson, Ford, John Deere, Case IH, Fiat and other popular tractor makes

Available in black (B-9642), yellow (B-9643) and blue (B-9644). All three use identical frame and suspension specifications. Full spare parts are available through the Bareco network for this seat.

View the Bareco Heavy Duty Suspension Seat →

Standard Suspension Seats — B-8642, B-8643, B-8644

The standard suspension range uses the same universal mounting plate as the heavy duty seats at a lower price point. The 26mm shock absorber and 3.2mm frame handle moderate ground conditions well — suitable for general farm use where continuous rough-ground operation is not the primary concern.

Specifications:

• Standard duty 26mm shock absorber
• 3.2mm heavy duty frame
• Universal sliding mounting plate adapts to most tractor seat bases
• Suits Massey Ferguson, Ford, John Deere and many other popular tractor brands

Available in black (B-8642), blue (B-8643) and yellow (B-8644). For occasional to moderate use, the standard range is a practical and cost-effective replacement. For full working days on rough ground, the B-9642 heavy duty range is the better choice.

View the Bareco Standard Suspension Seat →

Suspension Seat for Small Japanese Tractors — B-9645

Small Japanese tractors — Kubota, Yanmar, Iseki, Mitsubishi and similar — are widely used on Australian farms and acreages, but their compact operator stations don't always accommodate a full-size suspension seat. The B-9645 is sized specifically for these machines, with a compact footprint designed to fit most small Japanese tractor seat stations as a direct or near-direct replacement.

The mechanical suspension system requires no air supply or hydraulics — long service life with minimal maintenance. If you are running a fixed pan seat on a small Japanese tractor and find that longer sessions cause back fatigue, the B-9645 is one of the most effective upgrades you can make. Verify the mounting pattern against your existing seat base before ordering.

View the B-9645 Japanese Tractor Suspension Seat →

Full Size Pan Seat — B-9640

The B-9640 is the standard full-size pan seat and the most commonly stocked item in the Bareco seat range. Heavy-gauge pressed steel with baked enamel finish and universal mounting holes that fit the majority of modern tractors, ride-on mowers and industrial equipment without modification. If you need a pan seat replacement and are unsure which model to order, the B-9640 is the right starting point.

For a high-back version with lumbar support, see the B-9654 Michigan type. For sub-compact tractors, see the B-9641. For pre-1960s vintage tractors, see the B-1866.

View the B-9640 Full Size Pan Seat →

High Back Michigan Pan Seat — B-9654

The B-9654 shares the same construction and mounting pattern as the B-9640 but adds a curved high back panel that provides lumbar support. The Michigan-type design has been common on agricultural and industrial equipment for decades and is a practical option where a full suspension seat is not required but a flat pan is not comfortable enough for longer sessions. Heavy-gauge pressed steel, baked enamel finish, universal mounting pattern.

View the B-9654 High Back Michigan Seat →

Small Tractor Pan Seat — B-9641

The B-9641 is sized for sub-compact tractors, small ride-on mowers and compact machinery where the full-size B-9640 footprint is too large. Heavy-gauge pressed steel with baked enamel finish and universal mounting pattern. If your existing seat base is small and the B-9640 does not fit, the B-9641 is usually the correct replacement. Verify the mounting hole pattern against your existing bracket before ordering.

View the B-9641 Small Tractor Pan Seat →

Vintage Steel Pan Seat — B-1866

The B-1866 suits very early tractors — pre-1960s machinery where the seat base is smaller than the modern universal pattern. Restorers of vintage Massey-Harris, Ferguson, McCormick, early John Deere and similar machines will recognise this profile as the closest available match to the original equipment. Heavy-gauge pressed steel with baked enamel finish. The smaller footprint and mounting hole spacing are what distinguish it from the modern B-9640. This is a restoration-grade replacement, not a comfort upgrade.

View the B-1866 Vintage Steel Pan Seat →

Forklift Seat — B-9151

The B-9151 is built for industrial forklifts and telehandlers — a harder operating environment than agricultural tractor work, with more frequent mounting and dismounting, higher vibration from hard surfaces, and longer continuous shifts. Suspension mechanism for vibration absorption, cushioned cover for continuous use, heavy-duty construction and forklift-pattern mounting. Verify the mounting pattern against your existing seat base before ordering.

View the B-9151 Forklift Seat →

How to Choose the Right Bareco Tractor Seat

Suspension or pan? If you are in the seat four or more hours a day on rough ground, choose a suspension seat. For occasional use or short sessions, a pan seat replacement is adequate.

Standard or heavy duty suspension? For general farm use, the B-8642 standard range is a practical choice. For full working days in demanding conditions, the B-9642 heavy duty range is worth the step up — the 35mm vs 26mm shock absorber is the key difference.

Small Japanese tractor? The B-9645 is sized for Kubota, Yanmar, Iseki, Mitsubishi and similar compact machines. A full-size suspension seat will not fit most of these operator stations.

Which pan seat? Start with the B-9640 for modern machines. B-9641 for sub-compact. B-9654 for high-back lumbar support. B-1866 for pre-1960s vintage tractors with a smaller original seat base.

Forklift? B-9151 only — the duty cycle and mounting pattern are different from agricultural tractor seats.

Fitting Notes

Most Bareco pan seats use a universal mounting pattern that fits common tractor and ride-on mower seat bases without drilling. The suspension seat ranges include a sliding mounting plate that adapts across most common tractor brackets. Before ordering, verify the mounting hole spacing on your existing seat base. If you are unsure, call 1300 027 886 with your tractor make, model and year.

Browse all Bareco tractor seats →  |  Full Bareco parts range →

Frequently Asked Questions

What tractor brands do Bareco suspension seats fit?

The heavy duty (B-9642/43/44) and standard (B-8642/43/44) suspension seats fit Massey Ferguson, Ford, John Deere, Case IH, Fiat and other common tractor makes via a universal sliding mounting plate. For Kubota, Yanmar, Iseki and Mitsubishi, the B-9645 compact suspension seat is the correct choice. Call 1300 027 886 to verify fit for your specific make and model.

What is the difference between the standard and heavy duty Bareco suspension seats?

The heavy duty range (B-9642/43/44) uses a 35mm shock absorber, twin coil spring suspension, 4mm base and 95mm high-density cushion. The standard range (B-8642/43/44) uses a 26mm shock absorber and 3.2mm frame. Both use the same universal sliding mounting plate. For full working days on rough ground, the heavy duty range provides meaningfully better shock absorption.

Will a Bareco pan seat fit my tractor without drilling?

In most cases yes. The B-9640, B-9641, B-9654 and B-9151 all use universal mounting patterns. Older or less common tractors may require minor adjustment. Verify the mounting spacing on your existing bracket before ordering, or call 1300 027 886 if you are unsure.

Which Bareco seat suits a Kubota or Yanmar tractor?

The B-9645 suspension seat is specifically engineered for small Japanese tractors including Kubota, Yanmar, Iseki and Mitsubishi, with a compact footprint sized for these operator stations. The full-size suspension range will not fit most small Japanese tractor cabs.

Do Bareco tractor seats come with a seat belt?

The heavy duty suspension seats (B-9642/43/44) include approved seat belt mounting points. Seat belts are not included with pan seats. For ROPS-fitted tractors, confirm seat belt requirements with your state's workplace safety regulator.
