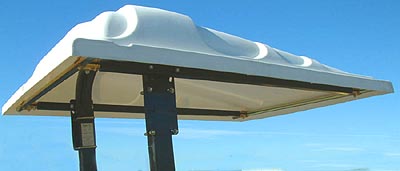

Tractor Canopy Buying Guide: Choosing Size, ROPS Type and Mounting Kit

Two things go wrong with tractor canopy orders. The canopy doesn't fit the ROPS frame because the buyer didn't confirm the tube diameter or shape. Or the mounting kit doesn't suit the specific ROPS configuration on their machine. Both problems are avoidable with the right information before ordering.

This guide covers the three decisions that matter: canopy size, ROPS type, and mounting kit compatibility.

Choosing the Right Canopy Size

Canopy size is typically described in width × depth dimensions — width being the measurement across the machine left-to-right, depth being front-to-back.

The right canopy size depends on two things:

1. The operator’s seating position and reach

The canopy needs to cover the operator position effectively across the likely sun angles during the working day. A canopy that is too narrow leaves the operator exposed during morning and afternoon work when the sun is lower. A canopy sized correctly for the seat position provides coverage across the full working day.

As a reference point, most compact and mid-range tractors are well-served by a canopy in the 1200–1400 mm width range. Larger machines may require 1500 mm or wider to provide adequate coverage.

2. The machine’s physical envelope

The canopy should not overhang the machine significantly on either side. An overly wide canopy can catch on overhead branches or structures, put lateral load on the ROPS frame, and become a handling problem in confined spaces. A canopy that’s flush with or slightly narrower than the machine’s widest points is the practical limit.

Measure the tractor width at its widest point (typically the rear tyres) and select a canopy that does not exceed this dimension by more than a modest margin.

Understanding ROPS Types

ROPS (Roll-Over Protective Structure) configurations vary significantly between tractor makes, models and years. Confirming the ROPS type on your machine is essential before selecting a mounting kit.

Two-post ROPS

Two-post ROPS frames have two vertical or angled uprights — one on each side of the operator position. The top of each post is typically capped or ends in a horizontal crossbar. This is the most common ROPS configuration on compact and mid-range tractors.

Canopy mounting on a two-post ROPS attaches to the top of each post. The key specifications are the tube diameter of each post and whether the post ends in a flat cap, a pin hole, or another configuration.

Single-post (A-frame) ROPS

Some tractors use a single rear post or A-frame configuration. Canopy mounting on these designs uses a different bracket approach that spans from the single post or A-frame apex.

Folding ROPS

Folding ROPS are common on tractors that work under low clearance — orchards, sheds, low-clearance implements. The ROPS folds forward to reduce height. Canopy mounting kits for folding ROPS must account for the fold mechanism — not all standard mounting kits are compatible with folding ROPS designs.

If your tractor has a folding ROPS, confirm this when ordering. A mounting kit designed for a fixed ROPS will not suit a folding ROPS without modification.

Cab ROPS

Larger tractors with enclosed cabs have integrated ROPS as part of the cab structure. Canopies are not applicable to enclosed-cab tractors. Canopies are for open-station (no cab) or partial-enclosure tractors only.

ROPS Tube Dimensions

The mounting kit must match the ROPS tube dimensions. The relevant specifications are:

• Tube diameter: the outside diameter of the ROPS post
• Tube profile: round tube vs square tube — most are round, but confirm
• Post-to-post spacing: the horizontal distance between the two posts (for two-post ROPS), which determines the mounting kit span

Measure the tube OD directly with a tape measure or vernier caliper. Common ROPS tube diameters range from approximately 50 mm to 90 mm. Mounting kits are designed for specific diameter ranges — a kit designed for 60 mm tube will not clamp correctly on 80 mm tube.

Mounting Kit Selection

Mounting kits connect the canopy frame to the ROPS posts. They typically consist of a pair of mounting brackets (one per post) with clamp hardware to secure to the ROPS tube, plus hardware to attach the canopy frame.

Selection criteria:

• ROPS tube diameter compatibility — as above, confirm this matches
• Canopy frame attachment pattern — the mounting kit must match the hole pattern on the canopy being fitted
• Fixed vs adjustable — some mounting kits have fixed geometry; adjustable kits allow the canopy angle or position to be tuned to the specific ROPS configuration
• ROPS post-top clearance — some kits clamp on the side of the ROPS post; others sit over the top. Confirm which approach suits your ROPS post design

Information to Have Ready When Ordering

To confirm the right canopy and mounting kit combination before ordering:

• Tractor make, model and year
• ROPS configuration (two-post fixed, folding, A-frame)
• ROPS tube outside diameter (measured)
• Post-to-post spacing at the top of the ROPS (measured)
• Any clearance constraints — low-clearance operations, shed heights, orchard work

Uniclamp stocks tractor canopies and mounting kits across the common ROPS configurations. If you have the measurements and configuration details, contact us before ordering and we’ll confirm the right combination. It’s a simpler process than returning a canopy that doesn’t fit.
