Disclaimer: Product images are indicative and products may differ to the size variation selected.

9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.

SKU: B-3663/1
(0)
$13.00
In stock
Usually ships within 24 hours
Hydraulic Hose
Trade Accounts Available

Businesses can sign up as a trade customer to access wholesale prices. Trade discounts are determined by minimum order values and frequency.

Free shipping over $200
100% secure payments
Australian owned & operated

Have questions?

Feel free to get in touch

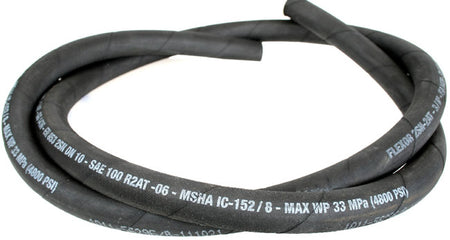

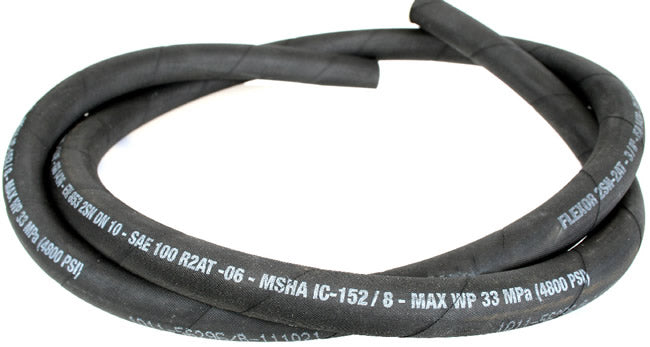

Bareco hydraulic hose is SAE100 R2 AT specification, double wire braid, non-skive type, rated for high-pressure agricultural hydraulic systems. Available in four bore sizes by the metre, or as ready-made assemblies in a range of popular lengths, this hose suits farm tractors, implements, loaders, and general agricultural hydraulic applications.

Working Pressure by Size

  • 1/4" bore (B-9330-1/4): 400 BAR (5,800 PSI) working pressure
  • 3/8" bore (B-3662-3/8): 330 BAR (4,800 PSI) working pressure
  • 1/2" bore (B-3663-1/2): 276 BAR (4,000 PSI) working pressure
  • 3/4" bore (B-9331-3/4): 215 BAR (3,120 PSI) working pressure

Hose Construction

  • SAE100 R2 AT specification, MSHA compliant (IC-152-8 flame resistance)
  • Inner tube: Nitrile rubber
  • Reinforcement: Two braids of high tensile steel wire
  • Cover: Abrasion, ozone, and hydrocarbon resistant synthetic rubber
  • Operating temperature: -40 degrees C to 100 degrees C

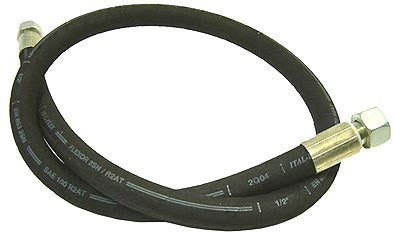

Ready-Made Hose Assemblies

Ready-made assemblies are available in 3/8" and 1/2" bore, from 500mm to 3.5 metre lengths, with swivel nuts on both ends for direct connection. To order hose by the metre, enter the number of metres required in the quantity field at checkout. To order ready-made assemblies, scroll through the variant list and select the bore and length required.

Order before 11am and we dispatch the same business day. We ship Australia-wide, including rural and regional areas — delivery times vary by location and carrier.

Free delivery on orders over $200. Orders under $200 incur a flat $20 shipping charge.

Ordering Bareco parts urgently, or shipping to a remote location? Call us on 1300 027 886 before you order and we'll confirm dispatch time frames.

All products come with guarantees that cannot be excluded under the Australian Consumer Law. You're entitled to a replacement or refund for a major failure, and to compensation for any other reasonably foreseeable loss or damage. You're also entitled to have goods repaired or replaced if they fail to be of acceptable quality, where the failure isn't major.

For any warranty or product fault enquiry, contact us on 1300 027 886 or sales@uniclamp.com.au with your order details.

Product variant list view

Easily add product variations to your cart to build your order.

Variant Quantity Price Total
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-9330-1/4 1 Metre Length B9330/1
$10.00
$0.00
$10.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-3662-3/8 1 Metre Length B-3662/1
$11.50
$0.00
$11.50
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-3663-1/2 1 Metre Length B-3663/1
$13.00
$0.00
$13.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-9331-3/4 1 Metre Length B-9331/1
$17.00
$0.00
$17.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-14750 Ready made assembly 1/4" x 750mm B-14750
$35.00
$0.00
$35.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-141000 Ready made assembly 1/4" x 1 Metre B-141000
$38.00
$0.00
$38.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-38500 Ready made assembly 3/8" x 500mm B-38500
$38.00
$0.00
$38.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-38750 Ready made assembly 3/8" x 750mm B38750
$39.00
$0.00
$39.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-381000 Ready made assembly 3/8" x 1 Metre B381000
$40.00
$0.00
$40.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-381200 Ready made assembly 3/8' x 1.2 Metre B381200
$42.00
$0.00
$42.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-381600 Ready made assembly 3/8" x 1.6 Metre B381600
$55.00
$0.00
$55.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-382000 Readymade assembly 3/8" x 2 Metre B382000
$58.00
$0.00
$58.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-382500 Ready made assembly 3/8" x 2.5 Metre B382500
$62.00
$0.00
$62.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-383000 Ready made assembly 3/8" x 3 Metre B383000
$69.00
$0.00
$69.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-383500 Ready made assembly 3/8' x 3.5 Metre B383500
$75.00
$0.00
$75.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-12500 Ready made assembly 1/2' x 500mm B12500
$45.00
$0.00
$45.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-12750 Ready made assembly 1/2" x 750mm B12750
$47.00
$0.00
$47.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-121000 Ready made assembly 1/2" x 1 Metre B121000
$49.00
$0.00
$49.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-121200 Ready made assembly 1/2" x 1.2 Metre B121200
$53.00
$0.00
$53.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-121600 ready made assembly 1/2" x 1.6 Metre B121600
$59.00
$0.00
$59.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-121800 Ready made assembly 1/2" x 1.8 Metre B121800
$62.00
$0.00
$62.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-122000 Ready made assembly 1/2" x 2 Metre B122000
$65.00
$0.00
$65.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-122500 Ready made assembly 1/2" x 2.5 Metre B122500
$72.00
$0.00
$72.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-123000 Ready made assembly 1/2" x 3 Metre B123000
$83.00
$0.00
$83.00
$0.00
9975 Series Hydraulic Hose supplied by the metre and Ready Made Hose Assemblies.
B-123500 Ready made assembly 1/2" x 3.5 Metre B123500
$90.00
$0.00
$90.00
$0.00
