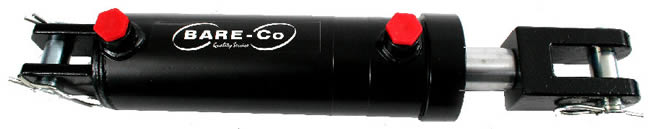

9975 Series Hydraulic Cylinders

9975 Series Hydraulic Cylinders

  • $330.00

These heavy duty  high pressure hydraulic cylinders have a hard chromium plated piston rod with a rated working pressure of 3000 PSI (20,685 KPA).Cylinders are welded with ASAE type clevis ends.

These hydraulic cylinders have a 1.5" inch bore with a 4 or 6" inch stroke depending on your choice of part number.Shaft diameter is 7/8"inch-port size 9/16" UNF UN O ring.

Closed length is 14 1/4"inch for B-3088 and 16 1/4" for B-3085.Seal repair kits are available for future maintenance.

Cylinders with longer strokes available on application from 8"inch to 48"inch with a 2" to 4"inch bore and a 1 1/4"inch to 2" inch diameter shaft. Closed lengths depend on model chosen up to 58 1/4" inch.
