Bareco S-tynes and associated earth engaging tools for cultivation and tillage. Two clearance heights are available: standard clearance (390mm under-frame) for normal conditions, and high clearance (500mm under-frame) for heavy residue or rocky ground. Points and clamps are listed separately, allowing you to replace wear items without replacing the whole tyne assembly.

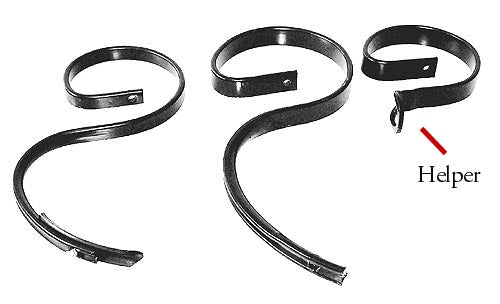

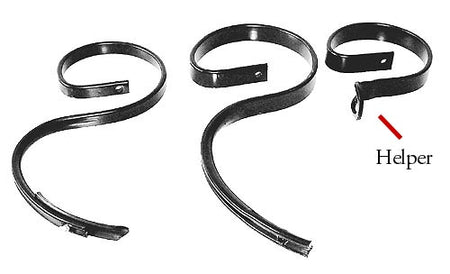

S-tynes

• B4051 - 10 x 32mm, 390mm clearance, complete with point
• B3912 - 12 x 32mm, 390mm clearance, complete with point
• B7428 - Heavy duty 12 x 45mm, 500mm clearance, point not included
• B7429 - Helper spring (suits high clearance tynes)

Tyne clamps

Available for 50 x 50mm, 50 x 15mm, and 65 x 65mm frame sections, in both standard and high-clearance configurations.

Reversible points

• B3740 - 190 x 37mm
• B3741 - 210 x 40mm
• B365 - 260 x 52mm

Sweep points

• B7432 - 105mm
• B7433 - 150mm

Grade 8.8 point bolts

• B7427 - 10 x 38mm
• B7431 - 10 x 45mm

Reversible points double service life by flipping the point when one face wears. Grade 8.8 bolts are specified for point retention in hard soil conditions. Confirm your frame section size before ordering clamps.
