3200 Series Preformed Clamps W4 Stainless Steel.

The 3200 Series preformed clamps are 304 grade W4 stainless steel rigid-profile clamps wrapped to a fixed diameter and locked together. Unlike worm-drive clamps that adjust through a range, preformed clamps deliver a precise, repeatable clamping diameter and a much higher clamping force — used on hose-to-fitting joints that must not move under pressure or vibration.

Common applications include marine exhaust slip joints, large industrial pump connections, fire system plumbing, mining slurry hose and any high-pressure or high-vibration joint where worm-drive or T bolt clamps will not hold. Available across multiple fixed diameters and band widths from 6.4mm narrow band up to 19.1mm heavy-duty wide band.

Size range

• 20 sizes from JS240 (20.6mm x 6.4mm wide) to JS213 (101.6mm x 19.1mm wide)
• Full size range available in the variant menu
• 304 grade W4 stainless steel band and hardware
• Multiple band widths — 6.4mm, 9.5mm, 12.7mm, 15.9mm, 19.1mm

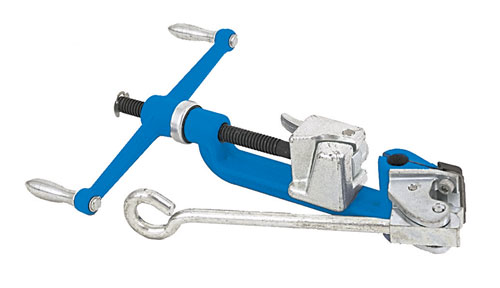

For variable-range high-pressure clamping, see the 7700 Series T bolt clamps or 7750 Series spring loaded T bolts. For free-end stainless banding cut to length, refer to the 3190 Series CV boot clamps and 3200 Series banding range. Use the UC-001-A banding tool to fit preformed clamps.

Order before 11am and we dispatch the same business day. We ship Australia-wide, including rural and regional areas — delivery times vary by location and carrier.

Free delivery on orders over $200. Orders under $200 incur a flat $20 shipping charge.

Ordering Bareco parts urgently, or shipping to a remote location? Call us on 1300 027 886 before you order and we'll confirm dispatch time frames.

All products come with guarantees that cannot be excluded under the Australian Consumer Law. You're entitled to a replacement or refund for a major failure, and to compensation for any other reasonably foreseeable loss or damage. You're also entitled to have goods repaired or replaced if they fail to be of acceptable quality, where the failure isn't major.

For any warranty or product fault enquiry, contact us on 1300 027 886 or sales@uniclamp.com.au with your order details.
