Reduced to clear V Band Clamp W2 VT10525 (5.25")

  • 1000




Turbo V Band Clamps are used in applications where two flanged joints have to be coupled together.V Band clamps are used to connect a vehicle exhaust pipe flange to the turbo or engine manifold.

V Band Clamps can withstand high temperatures produced by heavy duty engines and turbos.These clamps are manufactured to the highest tolerances and meet or exceed most O.E.M. specifications.V Band clamps are made from stainless steel with a zinc plated bolt.A detailed brochure is available.

No minimum quantity to order.

This V Band clamp is a direct replacement for the following OEM Part numbers

CAT     8N2745     DDC  5132650,513262    GM 2011586    VOLVO 02-7105902

R.G.Ray 10134      DD     8V71T,16V-71,16V-92T,6V92,8V92 AIRSEARCH T1899

FREIGHTLINER 01-14551   NAVISTAR 9300 SERIES WDD8V71,8V92,780067C91

AP  9616,DONALDSON P210110, DYNAFLEX 41-450S,EX AIR 88-456,GRAND ROCK VB-5250  HEAVY DUTY  21-125,NELSON 89510K,STEMCO 250-1017,WALKER 35746

SHUTTLEWORTH 320011

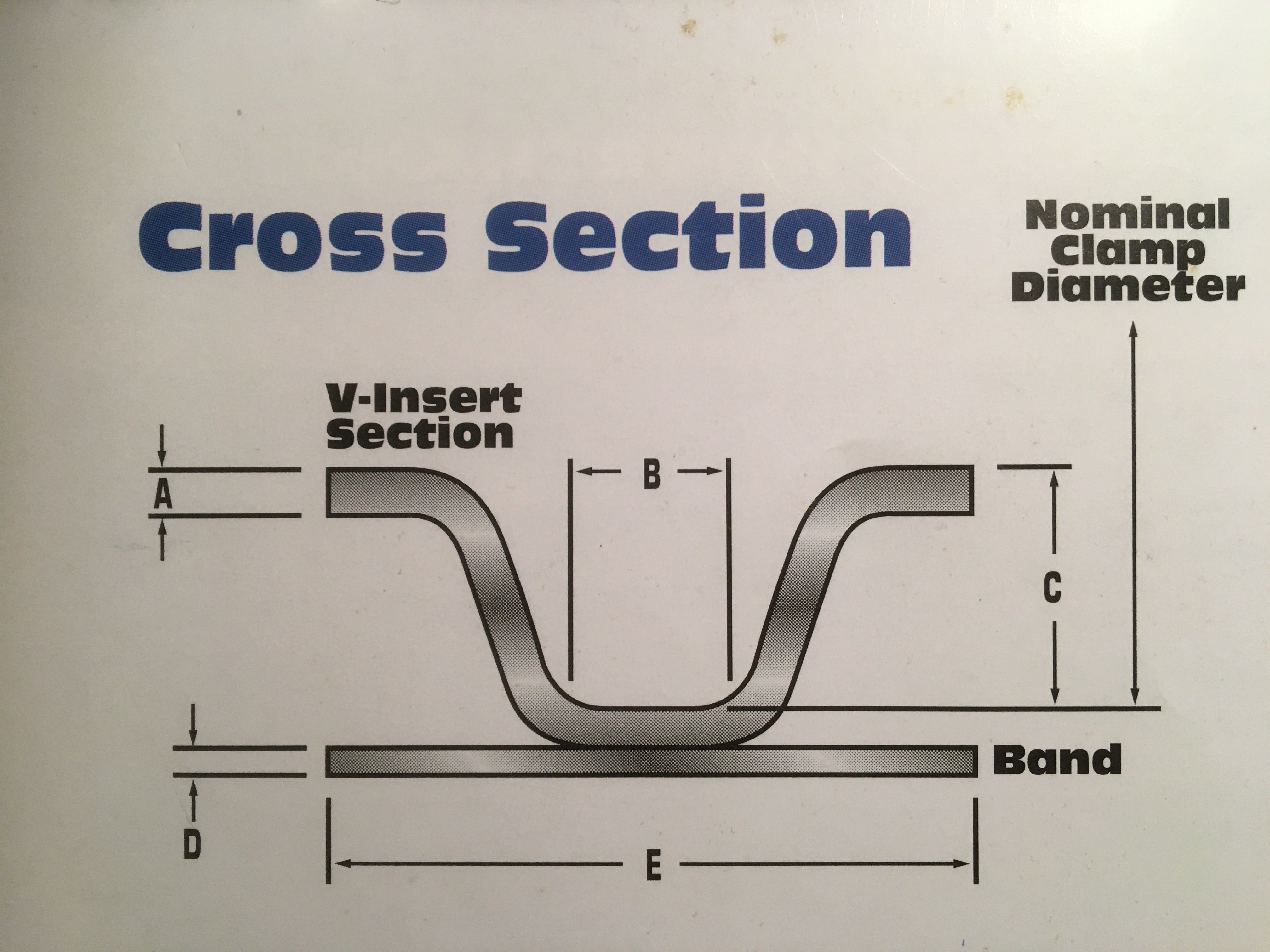

VT10525 CROSS SECTION DIAGRAM A = .050  B = .262  C = .141  D = .035  E = .750
