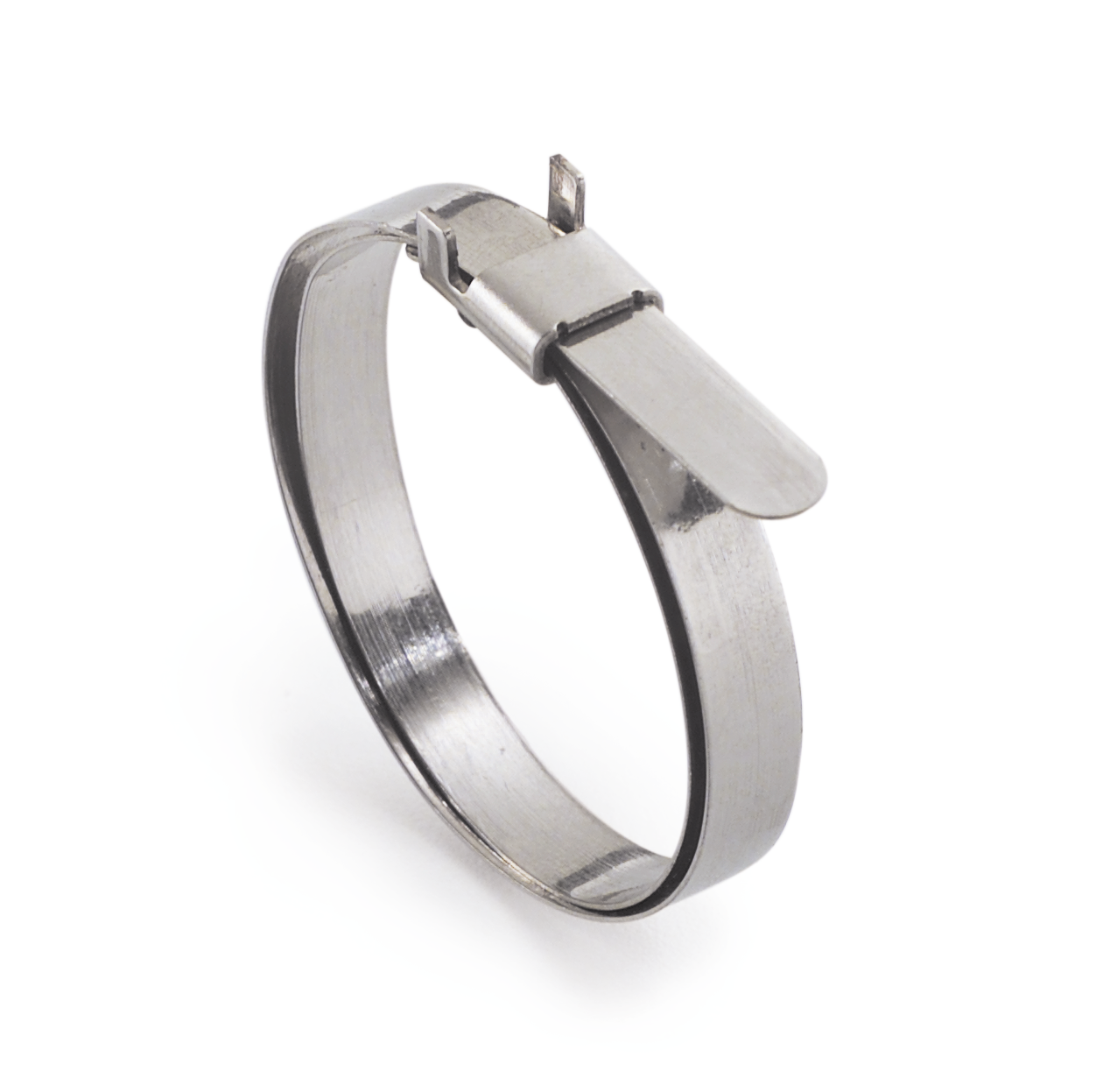

The 3190 Series stainless steel free-end clamps are 6.3mm wide bands cut to length with an integral locking buckle, supplied in 20 packs across five lengths from 130mm to 680mm. Manufactured from 430 grade stainless steel — the standard material for CV boot retention and similar free-end clamping on Australian vehicles and machinery.

Free-end banding clamps suit applications where a continuous worm-drive clamp will not fit, where the assembly must clear a flange or where the diameter is non-standard. Common uses include CV boots, rubber bellows, dust covers, marine cable looms, exhaust heat shields and signage. The clamp is tensioned with a banding tool, the tail folded back through the buckle and trimmed flush.

Available lengths and tools

• 63130 — 130x6.3mm, pack of 20
• 63280 — 280x6.3mm, pack of 20
• 63360 — 360x6.3mm, pack of 20
• 63480 — 480x6.3mm, pack of 20
• 63680 — 680x6.3mm, pack of 20

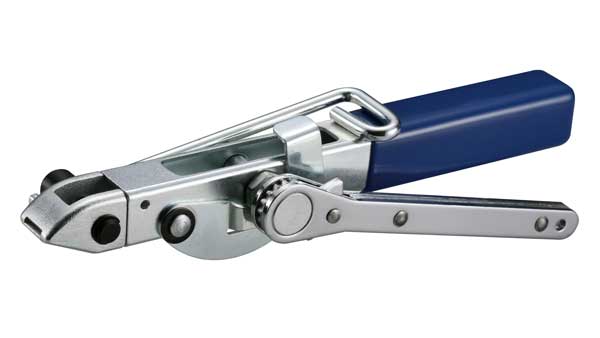

• J020 — CV boot installation tool with integrated cutter
• HC814 — economy installation tool without cutter

For wider bands and longer lengths, see the 3200 Series stainless banding range. For preformed fixed-diameter clamps, refer to the 3200 Series JS preformed clamps.
