7700 Series T Bolt Clamps W2 + Safety Caps

The 7700 Series T bolt clamps are W2 grade hinged-band clamps with a captive T bolt and trunnion, designed for higher-pressure connections than worm-drive clamps can handle. Standard fitment on turbocharger and intercooler hoses, charge air pipework, large industrial pumps, marine engine raw water and any flanged or stepped hose connection where a uniform, high-tension seal is required.

The T bolt arrangement applies clamping force evenly around the full band circumference, eliminating the localised distortion that can happen with a worm-drive clamp on a pressurised silicone or reinforced hose. W2 grade — stainless band with plated bolt — gives good corrosion resistance for engine bay, marine and industrial use. Plastic safety end caps are available to cover the bolt thread.

Size range

• Sizes from 32mm to 224mm
• Full size range available in the variant menu
• W2 grade — stainless band, plated T bolt

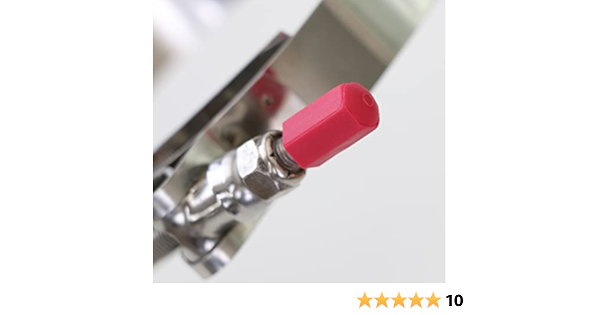

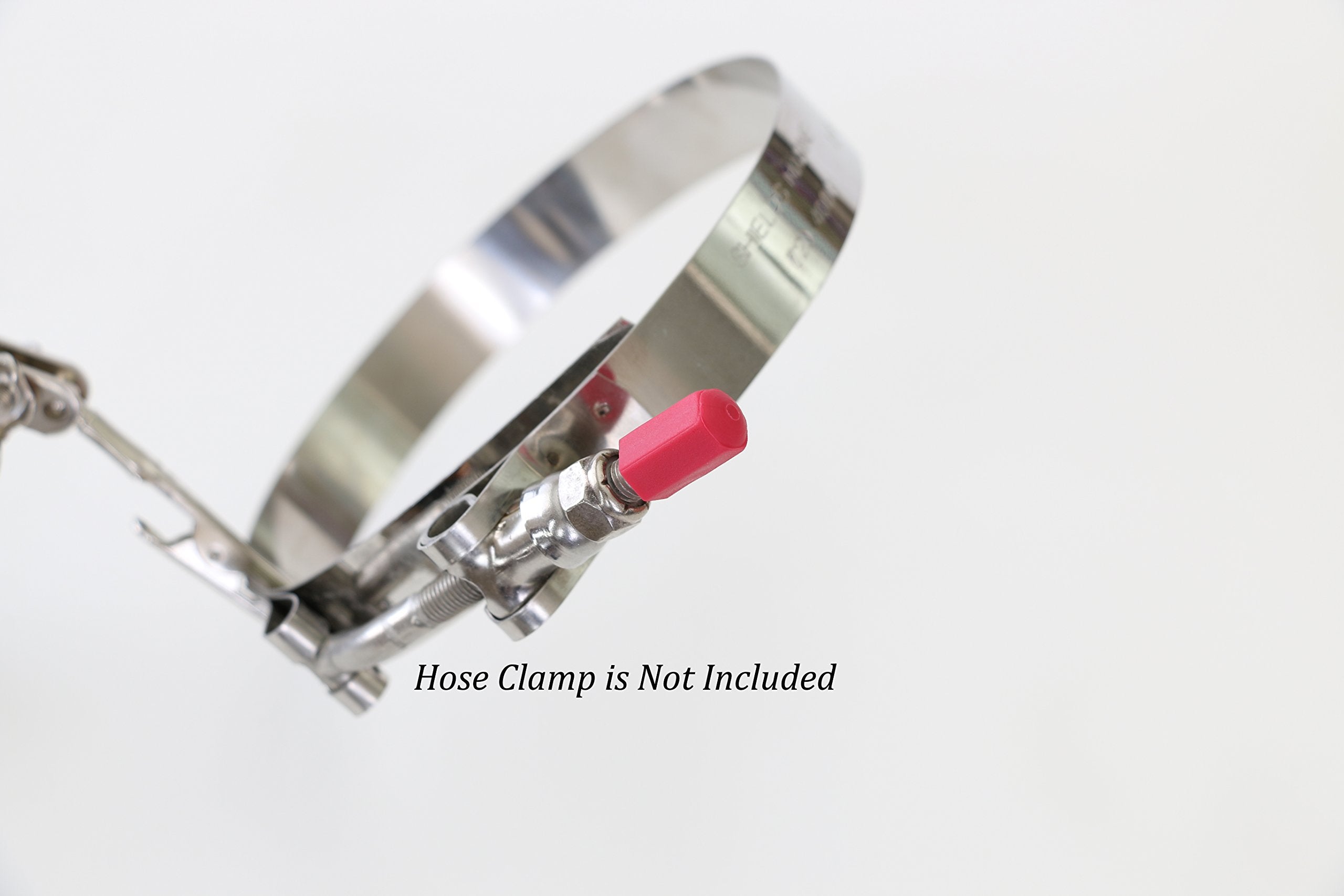

• Plastic safety end caps available on the list of variants

Manufactured in an IATF 16949:2016 and ISO 9001:2015 certified facility.

For applications where the joint cycles through high heat — such as tuned diesel charge air piping — step up to the 7750 Series spring loaded T bolt clamps. For lower-pressure cooling and water connections, see the 7500 Series Hi Torque or 4200 Series W4 marine grade clamps.
