A tractor-mounted rotary slasher is one of the hardest-working implements on an Australian farm. It runs fast, hits hard, and when something goes wrong — a stump strike, a seized gearbox bearing, a driveshaft coming apart — the repair bill is usually significant. The good news is that the most common failures are preventable: wrong setup, skipped maintenance, or a PTO driveshaft operational length that was never checked.
This guide covers the full cycle — setting up the slasher correctly, operating it safely, and maintaining it so the drivetrain lasts. Where replacement parts are needed, we've linked to the relevant Bareco components throughout.
Understanding the Slasher Drivetrain

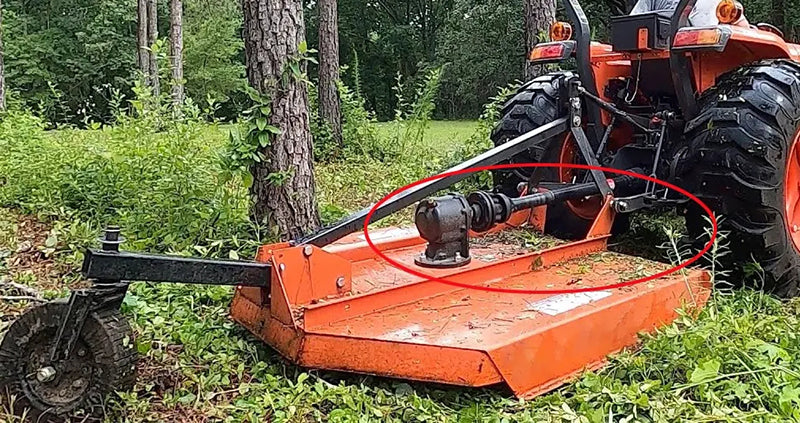

Before setting up, it helps to know what's doing the work. A typical rotary slasher drivetrain runs in sequence: tractor PTO → PTO driveshaft → slip clutch → slasher gearbox → cutting head. Each component has a job and a failure mode.
- PTO driveshaft — transmits torque from the tractor to the slasher. Must be the correct length and connected properly at both ends. Guide to PTO shafts →
- Slip clutch — protects the drivetrain from shock loads. Slips when torque exceeds a threshold, re-engages when clear. On high-inertia slashers, an overrun clutch also allows the heavy rotor to coast down after the PTO is disengaged. Bareco PTO safety clutches →
- Slasher gearbox — converts PTO input speed to blade speed. Takes oil, takes heat, and eventually wears. Most gearbox failures trace back to low oil, wrong oil, or a clutch that was too tight and let shock loads through. Bareco slasher gearboxes →
- Cutting head — the rotor, blade carrier and blades. Blades wear and need replacing. Imbalanced or missing blades cause vibration that destroys bearings.
Setting Up: Three-Point Linkage Attachment
Attach the slasher to the tractor's three-point linkage lower link arms first. Most slashers are fitted with a stepped pin that accepts either Category 1 (22mm) or Category 2 (28.6mm) lower link holes — confirm your tractor's category before connecting. Secure with linch pins through the pin hole end.
Once the lower links are connected:
- Tighten the anti-sway bars or chains. These should be firm but not rigid — they prevent the slasher from swaying side-to-side under load without locking out all lateral movement. Too loose and the slasher wanders; too tight and the linkage takes side loads it's not designed for.
- Connect the top link to the slasher tower. Top link length controls the tilt angle of the deck — this directly affects cutting height and how well the slasher follows ground contours. Too short and the front of the deck lifts off the ground; too long and the front digs in.
For lower link pins, linch pins and Cat 1/2 conversion bushes, see Bareco three-point linkage parts.
PTO Driveshaft: Checking Operational Length
This is the step that most people skip, and it's the one that causes the most damage. Before operating the slasher, you must verify that the PTO driveshaft has adequate compression travel throughout the full range of lift arm movement.
Why this matters: As the tractor lift arms raise and lower, the distance between the tractor PTO and the slasher gearbox input changes. The driveshaft must be able to slide (compress and extend) to accommodate this movement. If the shaft bottoms out (fully compressed), it generates severe shock loads through the gearbox and universal joints. If it pulls fully apart at maximum extension, the shaft separates — a serious safety hazard.
How to check:
- Connect the driveshaft at both ends. Ensure clamp bolts and quick-release yokes are fully seated in their grooves. A driveshaft not fully engaged will come apart under load.
- With the PTO disengaged, raise the lift arms to maximum height. Measure how much compression travel remains — the shaft must have at least 100mm (4") remaining before it bottoms out.
- Lower the lift arms to working position. Confirm the shaft has not extended to the point of separation risk.
- Check both positions before every time you use the slasher in new terrain. Steep gully entry and exit, or uneven ground, can push the shaft beyond its normal working range.
If the driveshaft is the wrong length: Operating with a shaft that bottoms or extends under working conditions will eventually destroy the gearbox, universal joints, or both. See our PTO shafts guide for how to select the correct replacement length.
Setting Cutting Height
A rotary slasher cuts cleanest — and requires less horsepower — when the front of the deck is set lower than the rear. The blades lead into the cut at a slight downward angle, which improves cutting efficiency and reduces the chance of the deck riding up over heavy material.
The correct differential depends on the blade type fitted:
- Stepped blades (the most common type on Australian slashers): set the front approximately 10–15mm lower than the rear as a starting point.
- Flat blades: a smaller differential or level deck is usually correct.
Adjust the top link to change the deck angle. If your slasher has rear castor wheels, use the castor height adjustment to set the rear of the deck, then adjust the top link to achieve the correct front-to-rear differential. Fine-tune this in the paddock — conditions vary and the right setting for long grass on flat ground will differ from heavy scrub on slopes.
PTO Speed: 540 or 1000 RPM
Most tractor slashers are set up at the factory for either 540 RPM or 1000 RPM PTO input. Operating at the wrong speed affects blade tip speed and cutting quality — and can damage the gearbox internals over time by running it outside its design range. Confirm your slasher's rated PTO speed from the manufacturer's specification and match it to your tractor's PTO setting.
In heavy or difficult conditions — thick scrub, wet grass, steep ground — the correct response is to reduce ground speed, not throttle back on the PTO. Reducing engine throttle drops blade speed, which reduces cutting efficiency and increases the risk of the slasher stalling. Keep the PTO at its rated speed and slow the tractor down instead.
Clutch Setup and Adjustment
If your slasher is fitted with a friction slip clutch, it needs to be set correctly before work begins. A clutch set too tight provides no shock protection — overload events transmit directly to the gearbox and driveline. A clutch set too loose slips constantly under normal load, generates heat, and wears the friction plates prematurely.
Initial setup:
- Before making any adjustment, operate the slasher in reasonably heavy conditions for 20–30 minutes. This allows the clutch plates to bed in and the clutch to reach normal operating temperature.
- Disengage the PTO, shut the engine down and remove the key.
- Place your hand on the clutch housing. If it is warm to the touch, the setting is approximately correct. If it is hot, the clutch has been slipping excessively and the spring tension needs increasing.
Adjustment:
- Undo the lock nuts on the clutch adjustment bolts.
- Tighten to increase spring tension (stops slipping) or loosen to decrease tension (allows clutch to slip at lower loads). Adjust each bolt by ½ to 1 turn at a time, working around evenly.
- Re-tighten lock nuts after each adjustment.
- Repeat the temperature test after a further 20–30 minutes of operation.
A clutch that is too tight and never slips provides no overload protection. If the slasher strikes a stump or rock at full speed with a locked-up clutch, the shock goes straight through to the gearbox input shaft and PTO driveline — expensive damage. For clutch replacement, see Bareco PTO safety and overrun clutches.
Maintenance Schedule
First 30–60 Minutes of Operation
After initial assembly or following any major component replacement, stop the slasher after the first 30 to 60 minutes of operation and check every bolt and nut for tightness. Working loads and vibration cause new assemblies to bed in and fasteners to loosen. Pay particular attention to:
- Clamp bolts on the PTO driveshaft yokes
- Cutting head (blade carrier) bolts
- Blade bolts and nuts
- Wheel nuts and castor assembly fasteners
- Gearbox mounting bolts
Skipping this check is a common cause of blade loss and gearbox damage in new or recently serviced slashers.
Gearbox Oil
| Task | Frequency | Specification |
|---|---|---|
| Check gearbox oil level | Daily (before operation) | 85W–140 EP gear oil |
| Change gearbox oil | Every 6 months or 200 hours | 85W–140 EP gear oil |
The correct oil specification for most Australian slasher gearboxes is 85W–140 EP gear oil (extreme pressure, heavy gear oil). Check the oil level at the sight glass or level plug before every day of operation — gearbox oil that drops low runs hot, loses its film strength and accelerates wear on gears and bearings. Change the oil every six months regardless of hours if the slasher is in regular use; annually if only used seasonally.
If you're diagnosing a failed gearbox, low or contaminated oil is the first thing to check. For gearbox replacement, see Bareco slasher gearboxes or our slasher gearbox replacement guide.
Greasing Schedule
| Component | Frequency | Grease Type |
|---|---|---|
| PTO driveshaft universal joints | Daily | All Purpose Grease EPL 2 |
| PTO driveshaft sliding tube | Daily | All Purpose Grease EPL 2 |
| Cutting head bearings | Daily | All Purpose Grease EPL 2 |
| Castor wheel bearings | Daily | All Purpose Grease EPL 2 |
| Top link ball ends | Weekly | All Purpose Grease EPL 2 |
| Linkage pin and hitch points | Weekly | All Purpose Grease EPL 2 |
Daily greasing of driveshaft universal joints is non-negotiable on a working slasher. These joints run at high speed under load, and a dry universal joint will fail within hours. If you hear squealing from the driveshaft area, this is the first thing to check.
Blade Replacement
Slasher blades are a wear item. They don't need replacing on a schedule but on condition — the indicators are:
- Noticeable vibration that wasn't there before (blade wear causes imbalance)
- Decline in cut quality — ragged finish, material not being discharged cleanly
- The slasher requires more throttle than usual to maintain blade speed in conditions it previously handled easily
- Visual inspection shows significant wear or chipping of the blade tip
Important: Always replace blades in balanced pairs on each side of the rotor. Fitting one new blade and leaving a worn blade on the opposite side creates an imbalanced rotor, which generates vibration that will destroy the cutting head bearings and gearbox output seal. If one blade is worn, replace all blades on that deck.
Use the correct grade hardware. Blade bolts on Australian slashers are typically Grade 8 UNC or equivalent — using lower-grade bolts risks blade loss under load, which is a serious safety hazard. Bareco slasher blade kits include matched blade sets plus the correct bolt, nut and bush hardware for Howard and other common slasher brands. View slasher blade kits →
Common Faults and Causes
| Symptom | Likely Cause | Action |
|---|---|---|
| Vibration during operation | Worn or imbalanced blades; missing blade | Replace blades in matched sets |
| Gearbox overheating | Low oil; clutch too tight causing excess slip heat; wrong oil spec | Check oil level and type; re-check clutch setting |
| Drive shaft separation during operation | Operational length not checked; shaft extends at maximum lift arm position | Check shaft length at all lift arm positions; replace shaft if wrong length |
| Drive shaft bottoming out | Shaft too short; steep terrain pushes arms to maximum | Check length; avoid terrain that pushes lift arms to limits with PTO engaged |
| Uneven cut height | Top link wrong length; anti-sway bars too tight; ground following restricted | Adjust top link; re-check anti-sway bar tension |
| Slasher lifts at front | Top link too short | Lengthen top link |
| Constant clutch slip at normal load | Clutch spring tension too low; worn friction plates | Increase spring tension; inspect plates for wear |
| No clutch slip on hard impact | Clutch too tight; spring tension too high | Reduce spring tension; re-run temperature test |
Replacement Parts
When components need replacing, Bareco supplies the most common slasher drivetrain parts available to order online with delivery anywhere in Australia:
- Slasher gearboxes — Q-series 40HP to 200HP, freight paid
- PTO safety and overrun clutches — 35HP to 220HP
- Slasher blade kits — suits Howard and other common brands
- PTO drive shafts — complete shafts 35HP to 297HP
- Linkage pins and top links
If you're diagnosing a gearbox failure specifically, our slasher gearbox replacement guide covers how to identify failure mode, choose the right replacement HP rating, and select between Q-series configurations.
For anything not listed or if you're unsure what you need, call 1300 027 886 — we can identify the right Bareco part for your slasher make and model.
Frequently Asked Questions
What oil goes in a slasher gearbox?
Most Australian tractor slasher gearboxes use 85W–140 EP (extreme pressure) gear oil. Check your slasher's manual for the specific recommendation — some older or European-specification gearboxes use different viscosities. Check the oil level daily and change it every six months or 200 hours in regular use.
How do I know if my slasher clutch needs adjustment?
Run the slasher in heavy conditions for 20–30 minutes, then shut down and place your hand on the clutch housing. Warm to the touch is correct. Hot to the touch means the clutch is slipping excessively and spring tension needs increasing. If the clutch never slips even on hard impacts, the tension is too high and adjustment is needed in the opposite direction.
Why does my slasher vibrate?
Vibration during slasher operation almost always indicates blade wear, blade loss, or an imbalanced rotor. Check all blades are present and in good condition. If one blade is worn, replace all blades on the deck in a matched set. Continued vibration after blade replacement may indicate a worn cutting head bearing.
How often should I grease the PTO driveshaft?
On a working slasher, grease the PTO driveshaft universal joints and sliding tube daily. These run at high speed under significant load and will fail quickly if run dry. If you hear squealing from the driveshaft area during operation, the shaft needs greasing immediately.
My slasher is leaving an uneven cut. What's causing it?
The most common cause is incorrect top link length. If the top link is too short, the front of the deck lifts off the ground, causing an uneven cut and reduced efficiency. Lengthening the top link brings the front of the deck down. Check that anti-sway bars are firm but not rigid — overly tight sway bars prevent the slasher from following ground contours properly.
