PTO Shafts Explained: Types, Sizing and Choosing the Right One for Your Tractor

Last updated: May 2026

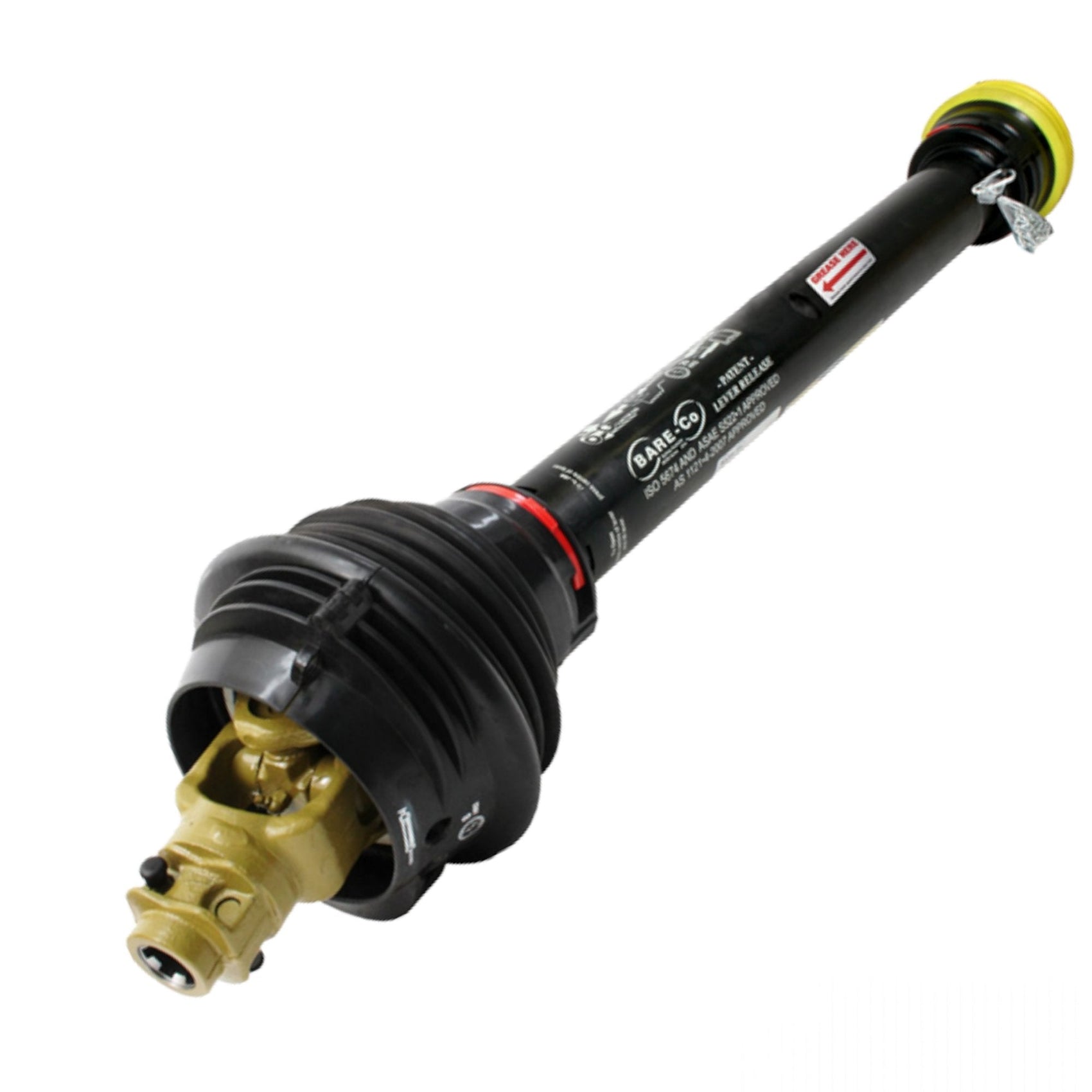

A PTO shaft (Power Take-Off shaft) is a driveshaft that transfers rotational power from a tractor to an attached implement. It connects the tractor’s PTO output to the implement’s input gearbox, transmitting torque to drive slashers, rotary hoes, augers, hay equipment and similar machinery.

This guide explains how PTO shafts work, what the different components do, how to identify what you need when replacing one, and what to look for in a replacement.

How a PTO Shaft Works

The tractor’s engine drives a splined output stub at the rear of the tractor, usually at 540 RPM or 1000 RPM depending on the tractor specification. The PTO shaft connects to this stub via a female spline socket and transfers that rotation to the implement.

The challenge is that the tractor and implement move independently during operation — the implement rises and falls with the linkage, and on uneven ground the angle between tractor and implement changes constantly. The PTO shaft has to transmit torque smoothly across these changing angles without binding or vibrating.

Two mechanisms handle this:

• Universal joints (U-joints or CV joints) allow the shaft to articulate at the connection points at each end
• A telescoping centre section (two tubes that slide within each other) allows the shaft to extend and compress as the implement raises and lowers

Together, these allow smooth power transfer across a range of angles and shaft lengths.

PTO Shaft Components

Yokes

The yoke is the forked fitting at each end of the shaft that connects to the U-joint crosses. The implement-end yoke connects to the implement input gearbox; the tractor-end yoke connects to the tractor PTO stub.

Yokes come in different bore diameters and spline configurations to suit different tractor and implement specifications. Getting this wrong means the shaft either won’t fit or won’t transmit torque correctly.

Universal joints

The U-joint (cross and bearing kit) sits between the yoke and the shaft tube. It allows angular movement at each end of the shaft. Standard U-joints are grease-nipple lubricated — they require regular greasing to remain in service.

CV joints (constant velocity joints) are a more advanced type that reduce vibration at higher operating angles. They’re common on implements that operate at steeper angles, such as front-mounted equipment.

Telescoping shaft tubes

The centre of the PTO shaft consists of two tubes — an outer and an inner — that slide together to allow the shaft length to vary as the implement is raised and lowered. The inner tube is typically a profile section (square, star or lemon profile) that locks the two tubes against rotation while still allowing them to slide.

The overlap between inner and outer tubes must remain within specified limits. Too little overlap and the shaft can separate under load; too much and the tubes bottom out, which can damage the implement gearbox or tractor PTO.

Safety guard

All PTO shafts operating in Australia must be fitted with a safety guard (also called a PTO shield). The guard covers the rotating shaft and yokes to prevent entanglement. It is a legal requirement and a critical safety component — replacing a shaft without its guard fitted is not acceptable in a working farm context.

The guard consists of a fixed outer shell that surrounds the rotating shaft but does not itself rotate. It’s held in place by a chain or plastic bearing at each end and is retained against rotation by a plastic cone bearing on the guard itself.

PTO Speed: 540 vs 1000 RPM

Tractors typically offer two PTO speeds: 540 RPM and 1000 RPM. Some tractors offer both; others only one.

• 540 RPM is the standard for most smaller implements — slashers, rotary hoes, augers, small balers
• 1000 RPM is used for higher-power equipment requiring more speed — larger balers, mowers, some mulchers

The implement specifies which speed it requires. Running an implement at the wrong PTO speed either under-powers it or damages it. The tractor PTO stub diameter also differs between 540 and 1000 RPM specifications, so the shaft must match both.

Measuring PTO Shaft Length

PTO shaft length is measured when the implement is in its operating position — typically with the three-point linkage at normal working height, not fully raised or lowered.

The measurement needed is the distance between the implement input gearbox and the tractor PTO stub, measured face-to-face. Add the depth of each yoke socket to determine the total compressed shaft length required.

The shaft must:

• Be long enough to maintain engagement when the linkage is fully raised
• Be short enough not to bottom out (tubes fully closed) when the linkage is at minimum height
• Maintain at least one-third of the inner tube overlapping the outer tube at maximum extension

If you’re unsure, measure the old shaft in its fully compressed and fully extended positions and compare to the replacement specification.

PTO Torque Limiters and Overrun Clutches

Many PTO shafts are fitted with additional protection devices at one or both ends:

Torque limiter (shear bolt or friction clutch)

A torque limiter protects the drivetrain from overload. When the implement hits an obstruction or becomes overloaded, the limiter slips or shears before the gearbox or tractor PTO is damaged. Shear bolt limiters use a sacrificial bolt that breaks at a set torque; friction clutch limiters slip continuously until the overload passes.

Overrun clutch

An overrun clutch prevents the implement’s rotational inertia from being transmitted back to the tractor when the PTO is disengaged suddenly. Slashers and rotary hoes carry significant blade inertia — without an overrun clutch, that inertia can jolt the drivetrain when the PTO is shut off.

Many PTO shafts combine a torque limiter at the implement end and an overrun clutch at the tractor end in a single unit.

Choosing a Replacement PTO Shaft

When selecting a replacement PTO shaft, confirm:

• Implement make and model — this determines the input gearbox yoke type and bore
• Tractor PTO stub specification — 540 or 1000 RPM, spline count and stub diameter
• Correct compressed and extended length — measure as described above
• Torque rating — the shaft must be rated for the implement’s power requirement
• Clutch and limiter type — match the original specification or upgrade if the original failed due to inadequate protection

Bareco PTO Shafts

Bareco manufactures a range of PTO shafts to suit Australian farm machinery. The range covers standard 540 RPM agricultural applications across common implement types including slashers, rotary hoes and augers.

Bareco shafts are available with:

• Standard U-joint or CV joint configurations
• Shear bolt or friction torque limiters
• Overrun clutch options
• Replacement guard kits

If you’re replacing a PTO shaft and are unsure of the correct specification, contact Uniclamp with the implement make and model, the tractor make and PTO type, and the measured shaft length. We’ll confirm the correct replacement before you order.

PTO Safety

PTO entanglement is one of the most serious injury risks on a farm. A few non-negotiables:

• Never operate a PTO-driven implement without the full shaft guard in place
• Never step over a rotating PTO shaft
• Keep loose clothing, belts and laces away from the shaft area at all times
• Always disengage the PTO and wait for complete stop before inspecting, clearing or adjusting an implement
• Inspect U-joint condition and guard integrity before each season

A worn U-joint that fails under load throws shaft sections at high velocity. It is not a marginal risk.
