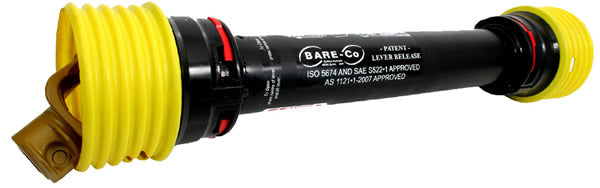

The Bareco DE36105 is a W2500 Series PTO drive shaft with DE-type joints, rated at 110HP at 540 RPM and 176HP at 1000 RPM. Closed length is 130cm, extending to 185cm open. The DE Series uses a 1 3/4" x 20 spline clamp-style yoke on one end, giving a more positive, secure connection to the implement compared to a standard quick-release yoke.

This yoke configuration suits implements where a clamp-bolt connection is preferred or required by the manufacturer. Match the spline size to your tractor and implement connections before ordering.

Key specifications

• Part number: DE36105
• Series: W2500, DE joint type (star profile tubing)
• HP rating: 110HP at 540 RPM / 176HP at 1000 RPM
• Closed length: 130cm / Open length: 185cm
• Yokes: 1 3/4" x 20 spline, one end clamp-bolt style

Supplied complete with safety guard. Spare parts are stocked in Australia. If you need the 6-spline quick-release version in this HP range, see the AW36105.

Not sure which Bareco PTO shaft suits your tractor? The PTO shaft selection guide covers sizing, spline types, safety clutch options and the full product range.
