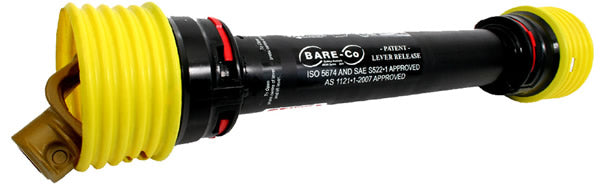

9985 Series P.T.O Complete Bareco Drive Shaft 106HP AB8105.

  • $440.00

This drive shaft is suitable for large size slashers and other agricultural machines with a 100 HP rating.The shaft is complete with the latest safety guard technology to insure user safety. Quick release 1 3/8" inch 6 spline yokes are fitted on both ends for quick and easy attachment to your tractor and machine.

The operating length is 100 to 160cm from universal cross centre to cross centre.Universal cross dimensions are 35mm cap size and 106.5mm from cap to cap.This shaft is designated as a series 8 drive shaft, the shaft can be cut down to a shorter length if required as the drive tube is the hollow triangular profile type.Spare parts are readily available for future maintenance of the drive shaft. We can also modify this shaft to have different type yokes such as bore yokes on either end on application.

Longer drive shafts are available on application such as 1.5 metre

Friction clutches or safety clutches are also available on application to suit this drive shaft.

A full range of CV wide angle 80 degree drive shafts are now available with or without slip clutches.Wide angle drive shafts increase the efficiency when towing implements by reducing the problems with unequal joint angles when making turns allowing for better turning circles in the field. See our 9988 Series on this website.

see attached images.
