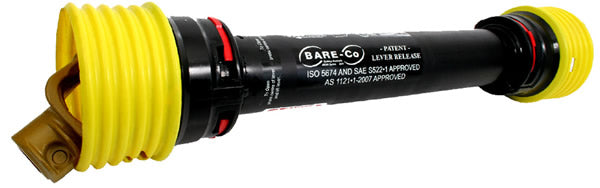

9985 Series P.T.O Complete Bareco Drive Shaft 35 HP AB4105
This drive shaft is suitable for small to medium size slashers and other agricultural machines with a 35 HP rating.The shaft is complete with the latest safety guard technology to insure user safety.Quick release 1 3/8" inch 6 spline yokes are fitted on both ends for quick and easy attachment.
The operating length is 100 to 160cm from universal cross centre to cross centre.(Closed length 1 metre) Universal cross dimensions are 27mm cap size and 74.6 from cap to cap.This shaft is designated as a series 4 drive shaft, the shaft can be cut down to a shorter length if required as the drive tube is the hollow triangular profile type.Spare parts are readily available for future maintenance of the drive shaft.We can also modify this shaft to have different type yokes such as bore yokes on either end on application.
Longer drive shafts are available on application such as 1.5 metre
Friction clutches or safety clutches are also available on application to suit this drive shaft.
A full range of 9988 Series CV wide angle (80 degree angle) drive shafts are now available with or without safety clutches look for 9988 series on this site,see attached images.Wide angle drive shafts increase the efficiency when turning towed implements by reducing the problems with unequal joint angles when making turns allowing for better turning circles in the field.See our 9988 Series drive shafts on this website.
