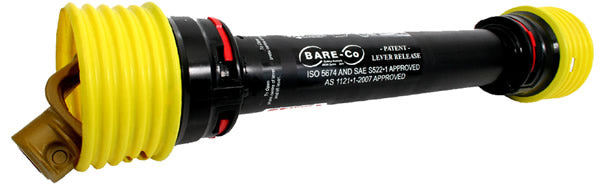

9985 Series P.T.O Complete Bareco Drive Shaft 64HP AB6105

  • $335.00

This drive shaft is suitable for medium to large size slashers and other agricultural machines with a 60 HP rating.The shaft is complete with the latest safety guard technology to insure user safety. Quick release 1 3/8" inch 6 spline yokes are fitted on both ends for quick and easy attachment to your tractor and machine.

The operating length is 100 to 160cm from universal cross centre to cross centre.Universal cross dimensions are 30.22mm cap size and 92mm from cap to cap.This shaft is designated as a series 6 drive shaft, the shaft can be cut down to a shorter length if required as the drive tube is the hollow triangular profile type.Spare parts are readily available for future maintenance of the drive shaft.We can also modify this shaft to have different type yokes such as bore yokes on either end on application.

Longer drive shafts are available on application such as 1.5 metre

Friction clutches or safety clutches are also available on application to suit this drive shaft.

A full range of CV wide angle driveshafts 80 degree angle are now available in all horsepower ratings with or without slip clutch.Wide angle drive shafts increase the efficiency when turning towed implements by reducing the problems with unequal joint angles when making turns allowing for a better turning circles in the field.See our 9988 Series on this website.

see attached images.Details available on application.
