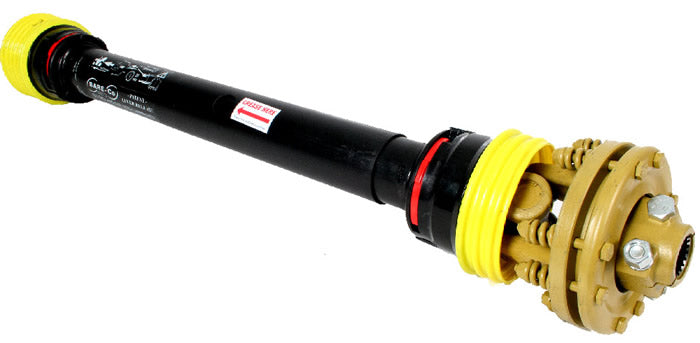

9985 Series P.T.0. Complete Bareco Drive Shaft with Safety Clutch 106 HP C8105
This drive shaft is suitable for large size slashers and other agricultural machines with a 100 HP rating.The shaft is complete with the latest safety guard technology to insure user safety.Quick release 1 3/8" inch 6 spline yoke is fitted on one end and 1 3/8" 6 spline 2 bolt on yoke is part of the safety clutch for secure attachment to your machine.
The operating length is 100 to 165cm from universal cross centre to cross centre.Universal cross dimensions are 35mm cap size and 106.5mm from cap to cap.This shaft is designated as a series 8 drive shaft, the shaft can be cut down to a shorter length if required as the drive tube is the hollow triangular profile type.Spare parts are readily available for future maintenance of the drive shaft.Longer drive shafts are available on application such as 1.5 metre in length.
A full range of wide angle 80 degree drive shafts are now available in all horsepower ratings with or without slip clutch. Wide angle driveshafts increase the efficiency when turning towed implements by reducing the problems with unequal joint angles when making turns allowing for better turning circles in the field. See our 9988 series shown on this website.
See attached images specific details available on application.
