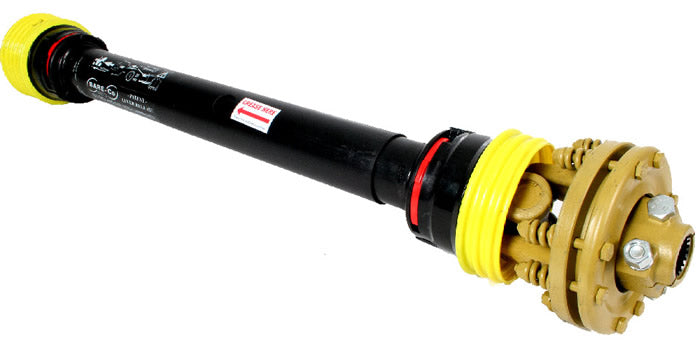

9985 Series P.T.0. Complete Bareco Drive Shaft with Safety Clutch 35 HP SB4086

  • $535.00

This drive shaft is suitable for small to medium size slashers and other agricultural machines with a 35 HP rating.The shaft is complete with the latest safety guard technology to insure user safety.Quick release 1 3/8" inch 6 spline yoke is fitted on one end and 1 3/8" 6 spline 2 bolt on yoke is part of the safety clutch for secure attachment to your machine.

The operating length is 100 to 160cm from universal cross centre to cross centre.Universal cross dimensions are 27mm cap size and 74.6 from cap to cap.This shaft is designated as a series 4 drive shaft, the shaft can be cut down to a shorter length if required as the drive tube is the hollow triangular profile type.Spare parts are readily available for future maintenance of the drive shaft.Longer drive shafts are available on application such as 1.5 metre in length.

 Wide angle drive shafts are now available in all horsepower ratings with or without slip clutch. Wide angle drive shafts increase the efficiency when turning towed implements by reducing the problems with unequal joint angles when making turns allowing for a better turning circles in the field.Contact us for further information see attached images.See our 9988 series on this website.
