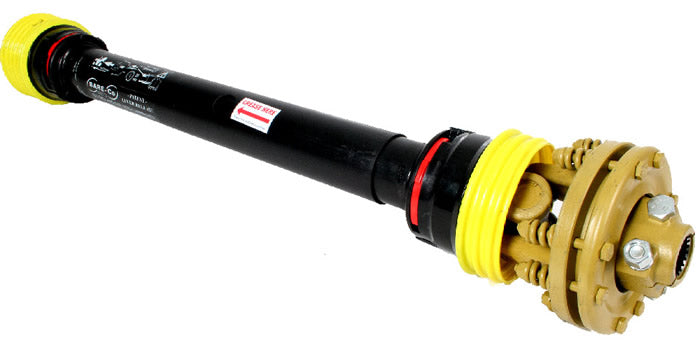

9985 Series P.T.0 Complete Bareco Drive Shaft with Safety Clutch 64 HP SB6105
This drive shaft is suitable for medium size slashers and other agricultural machines with a 60 HP rating.The shaft is complete with the latest safety guard technology to insure user safety.Quick release 1 3/8" inch 6 spline yoke is fitted on one end and 1 3/8" 6 spline 2 bolt on yoke is part of the safety clutch for secure attachment to your machine.
The operating length is 100 to 165cm from universal cross centre to cross centre.Universal cross dimensions are 30.22mm cap size and 92mm from cap to cap.This shaft is designated as a series 6 drive shaft, the shaft can be cut down to a shorter length if required as the drive tube is the hollow triangular profile type.Spare parts are readily available for future maintenance of the drive shaft.Longer drive shafts are available on application such as 1.5 metre in length.
CV Wide angle drive shafts 80 degree angle are now available in all horsepower ratings Available with or without slip clutches,wide angle drive shafts increase the efficiency when turning towed implements by reducing the problems of unequal joint angles when making turns allowing for better turning circles in the field. See our 9988 series shown on this website.
Contact us for more information see attached images.
