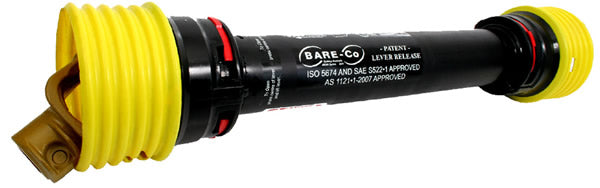

The Bareco AW26150 is the long-reach version of the W2600 Series PTO drive shaft, rated at 120HP at 540 RPM and 192HP at 1000 RPM. Closed length is 160cm, extending to 240cm open. This length suits implements with a greater tractor-to-implement distance, or where additional length is needed to accommodate front-mounted hitches and extended drawbars.

Both PTO speeds (540 RPM and 1000 RPM) are supported. The same shaft transmits 192HP at 1000 RPM compared to 120HP at 540 RPM, reflecting the direct relationship between RPM and power transfer through a given joint size.

Key specifications

• Part number: AW26150
• Series: W2600 (star profile tubing)
• HP rating: 120HP at 540 RPM / 192HP at 1000 RPM
• Closed length: 160cm / Open length: 240cm
• Yokes both ends: 1 3/8" x 6 spline quick-release

Supplied complete with safety guard. Spare parts are stocked in Australia. For the shorter version of this shaft, see the AW26105 (125cm closed, 185cm open).

Not sure which Bareco PTO shaft suits your tractor? The PTO shaft selection guide covers sizing, spline types, safety clutch options and the full product range.
