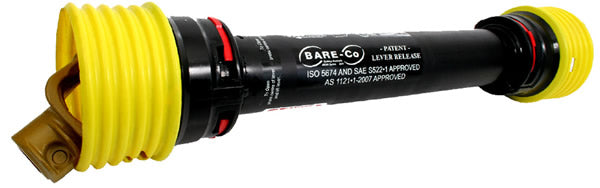

The Bareco AW36150 is the long-reach version of the W2500 Series PTO drive shaft, rated at 110HP at 540 RPM and 176HP at 1000 RPM. Closed length is 165cm, extending to 245cm open. This makes it the correct choice where a longer PTO shaft is needed for the 110HP range, such as trailed implements with extended hitches or machines requiring extra travel between tractor and gearbox.

Both 540 RPM and 1000 RPM tractor PTOs are supported at the rated capacities.

Key specifications

• Part number: AW36150
• Series: W2500 (star profile tubing)
• HP rating: 110HP at 540 RPM / 176HP at 1000 RPM
• Closed length: 165cm / Open length: 245cm
• Yokes both ends: 1 3/8" x 6 spline quick-release

Supplied complete with safety guard. Spare parts are stocked in Australia. For the shorter version of this shaft, see the AW36105 (130cm closed, 185cm open).

Not sure which Bareco PTO shaft suits your tractor? The PTO shaft selection guide covers sizing, spline types, safety clutch options and the full product range.
