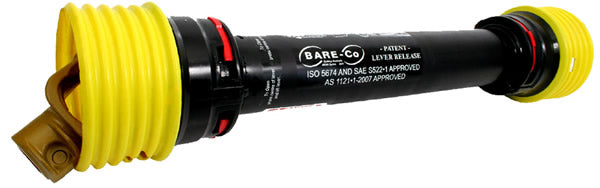

The Bareco DC26105 is a W2600 Series PTO drive shaft rated at 120HP at 540 RPM and 192HP at 1000 RPM. Closed length is 125cm, extending to 185cm open. The DC Series uses a different universal joint assembly to the AW Series; if your existing shaft is a DC-type, use DC-series replacement parts for compatibility.

Suits large slashers, rotary hoes, and heavy agricultural implements operating at 120HP or below on a 540 RPM PTO, or up to 192HP on a 1000 RPM PTO.

Key specifications

• Part number: DC26105
• Series: W2600, DC joint type (star profile tubing)
• HP rating: 120HP at 540 RPM / 192HP at 1000 RPM
• Closed length: 125cm / Open length: 185cm
• Yokes both ends: 1 3/8" x 6 spline quick-release

Supplied complete with safety guard. Spare parts are stocked in Australia. For the longer version of this shaft, see the DC26150 (160cm closed, 240cm open). If your machine uses AW-type joints, see the AW26105.

Not sure which Bareco PTO shaft suits your tractor? The PTO shaft selection guide covers sizing, spline types, safety clutch options and the full product range.
