Marine Hose Clamps: Grades, Saltwater Corrosion and What to Buy in Australia

Last updated: June 2026

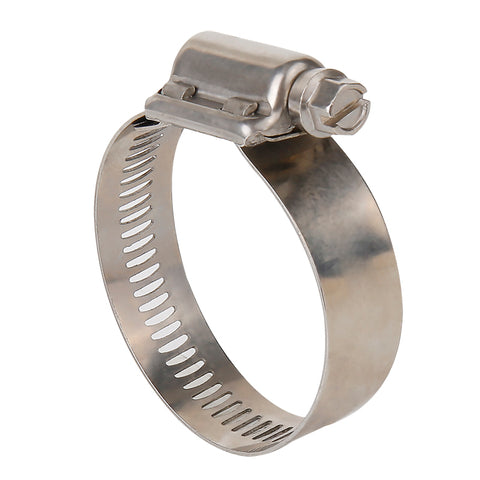

A marine hose clamp is a stainless steel worm drive clamp manufactured to withstand prolonged saltwater exposure, UV, and the humidity cycles of a marine environment. The minimum acceptable grade for saltwater use is W4 (304 stainless throughout). For underwater fittings, bilge connections, or highly corrosive saltwater environments, W5 (316 stainless) is required. Standard zinc-plated or partially stainless clamps will corrode and fail.

Why Marine Applications Demand a Different Clamp

Saltwater is roughly 50 times more corrosive than freshwater. On a boat, hose clamps are exposed not just to water but to a combination of salt spray, standing moisture, bilge fumes, and constant temperature cycling. A standard W1 or W2 clamp — perfectly adequate in an automotive or plumbing application — will show rust within weeks and fail within months in a marine environment.

The problem is not just cosmetic. A corroded clamp loses clamping force. On a raw water cooling inlet, exhaust hose, or bilge pump connection, clamp failure means water ingress. On a vessel underway, that is a serious safety issue.

The second issue specific to boats is galvanic corrosion. When two dissimilar metals make electrical contact in the presence of an electrolyte (salt water), the less noble metal corrodes preferentially. A stainless clamp on an aluminium fitting, or a mix of W4 and W5 clamps on the same fitting, can accelerate corrosion in ways that dry-land applications never encounter. More on this below.

Hose Clamp Grades for Marine Use: W1 to W5

See our full explanation of what the W-grades mean in our hose clamp material codes guide.

W4 vs W5: The Decision That Matters

For most Australian boaties, W4 (304 stainless) is the practical choice for the majority of hose connections above the waterline: raw water cooling hoses, exhaust connections, freshwater system hoses, and fuel lines. It handles spray, humidity, and intermittent saltwater contact without issue.

W5 (316 stainless) contains molybdenum, which dramatically improves resistance to chloride pitting — the specific corrosion mechanism saltwater causes in 304 stainless. It is required for:

• Below-waterline connections — where the clamp is permanently submerged or in contact with bilge water
• Exhaust systems on high-hour engines — where heat and salt combine
• Offshore or ocean-going vessels — where exposure is constant and inspection intervals are long
• Installations where replacement is difficult — behind liners, in sumps, in keel-stepped mast bases

The cost difference between W4 and W5 is small. When a clamp failure means a flooded bilge, specifying W5 in critical locations is always the right call.

Galvanic Corrosion: The Risk Nobody Mentions

Galvanic corrosion occurs when two metals with different electrochemical potentials are connected in the presence of an electrolyte. Salt water is an excellent electrolyte. The more noble metal (higher on the galvanic series) is protected; the less noble metal corrodes preferentially.

On a boat, this creates two specific risks with hose clamps:

1. Mixing W4 and W5 clamps on the same fitting. 304 and 316 stainless are close on the galvanic series, so this is low-risk in practice. But mixing stainless with brass fittings or aluminium hose tails is a bigger concern — the aluminium will corrode.

2. Using stainless clamps on non-stainless fittings. A 316 stainless clamp on a bronze through-hull is generally fine (both are relatively noble). A stainless clamp on an uncoated aluminium hose tail in a bilge environment will accelerate pitting of the aluminium. Consider using a plastic-lined or non-metallic clamp in these applications, or ensure the fitting is properly isolated.

Practical rule: use the same grade throughout a fitting. Double-clamp both clamps with the same specification. Do not mix grades.

Where to Use Each Grade on a Boat

Marine Fuel Line Hose Clamps

Fuel line connections on marine vessels have requirements beyond standard saltwater resistance. A marine fuel hose clamp must resist corrosion from both seawater and fuel — petrol, diesel and ethanol-blended fuels all degrade certain metals and elastomers over time.

The minimum grade for any marine fuel line is W4 (all 304 stainless). This applies to fuel filler hoses, fuel vent lines, and connections at the fuel tank and engine. For offshore or ocean-going vessels where access is difficult and inspection intervals are long, W5 (316 stainless) is the more conservative choice on fuel system connections.

Key points for marine fuel line clamp selection:

• Use a smooth-band clamp where possible. Fuel hose is often softer than coolant hose — a worm drive clamp with a sharp band edge can cut into the hose wall under vibration. A constant-torque or high-quality worm drive with a smooth inner band edge is preferred on fuel lines.
• Avoid zinc or partially plated clamps entirely. W1 and W2 grades corrode in the presence of fuel vapour and saltwater. W4 is the absolute minimum.
• Double-clamp fuel connections at the tank and engine. Marine safety standards recommend double clamping on all fuel system connections, not just bilge and raw water circuits.
• Check clamp compatibility with ethanol-blended fuels. E10 and E85 don't affect stainless steel clamps, but do affect some rubber hose compounds — worth checking the hose manufacturer's spec if you're running ethanol-blended fuel on an older vessel.

Uniclamp's W4 and W5 marine hose clamps are suitable for marine fuel line applications. The 6700 Series (W4) and equivalent W5 variants are stocked in the sizes used on most Australian production boats.

Installing Marine Hose Clamps: What to Get Right

Correct installation matters as much as grade selection. A quality W5 clamp installed incorrectly will fail just as surely as a cheap one.

1. Double-clamp all critical connections. Any hose connection below the waterline, or on the raw water and exhaust circuit, should have two clamps positioned side by side. If one fails, the second holds. This is standard practice in marine applications and required by most classification societies for vessels under survey.
2. Position the screw housing away from the hose end. The clamp should sit 6–10mm back from the hose end, with the screw housing rotated away from the fitting bend. This distributes clamping force evenly and keeps the housing accessible.
3. Torque correctly — do not overtighten. Marine hose is often softer than automotive hose. Overtightening cuts into the hose wall, creating a stress point that fails under vibration. Tighten until snug with moderate force — not until the band begins to distort. Typical installation torque for a W4/W5 marine clamp is 2–4 Nm.
4. Re-torque after the first engine run. Rubber hose compresses slightly under clamp pressure and with initial heat exposure. Check and re-torque after the first use.
5. Inspect annually. Even W5 clamps can develop crevice corrosion under the band where moisture is trapped. Annual inspection and replacement of any clamp showing pitting or discolouration is cheap insurance.

A Note on Double Clamping

Double clamping is sometimes misunderstood. Two clamps side by side are not the same as one clamp with double the tightening force — they should each be torqued to the same specification as a single clamp. The redundancy is the point: independent failure modes, not compounded clamping load.

For this reason, it is worth having a consistent supply of the same clamp size on board. Uniclamp's marine grade hose clamps are available individually or in trade packs, with a wide enough size range to cover the typical hose sizes found on Australian production boats.

Frequently Asked Questions

What is the minimum grade for saltwater use?

W4 (all 304 stainless) is the minimum for above-waterline saltwater applications. W5 (all 316 stainless) is required for below-waterline and continuously submerged connections. W1, W2 and W3 are not suitable for marine use — the zinc-plated components corrode quickly in salt air and spray.

Can I use W4 clamps below the waterline?

Technically possible, but not recommended. 304 stainless is susceptible to chloride pitting when permanently submerged in salt water. The incremental cost of specifying W5 throughout is negligible compared to the cost of a below-waterline failure. Use W5 for any connection that is permanently wet or below the waterline.

How many clamps should I put on a marine hose connection?

Two, for any critical connection — raw water, exhaust, bilge, and all below-waterline hoses. Position them side by side with a small gap between bands. Non-critical above-waterline connections (freshwater, cockpit drains) can be single-clamped.

What size marine clamp do I need?

Measure the outside diameter of the hose — not the inside diameter or the pipe it fits over. The clamp's range should include that measurement, ideally with the screw housing sitting near the middle of its adjustment. See our hose clamp size guide for step-by-step measuring instructions.

Are spring clamps suitable for marine use?

Spring clamps are used as OEM fitments on some marine engines and outboards. For replacement and aftermarket use, worm drive clamps are generally preferred — they are adjustable, retorqueable, available in W4 and W5 grades, and easier to inspect. The self-tensioning benefit of a spring clamp is less relevant in a saltwater environment where regular inspection is standard practice anyway.
